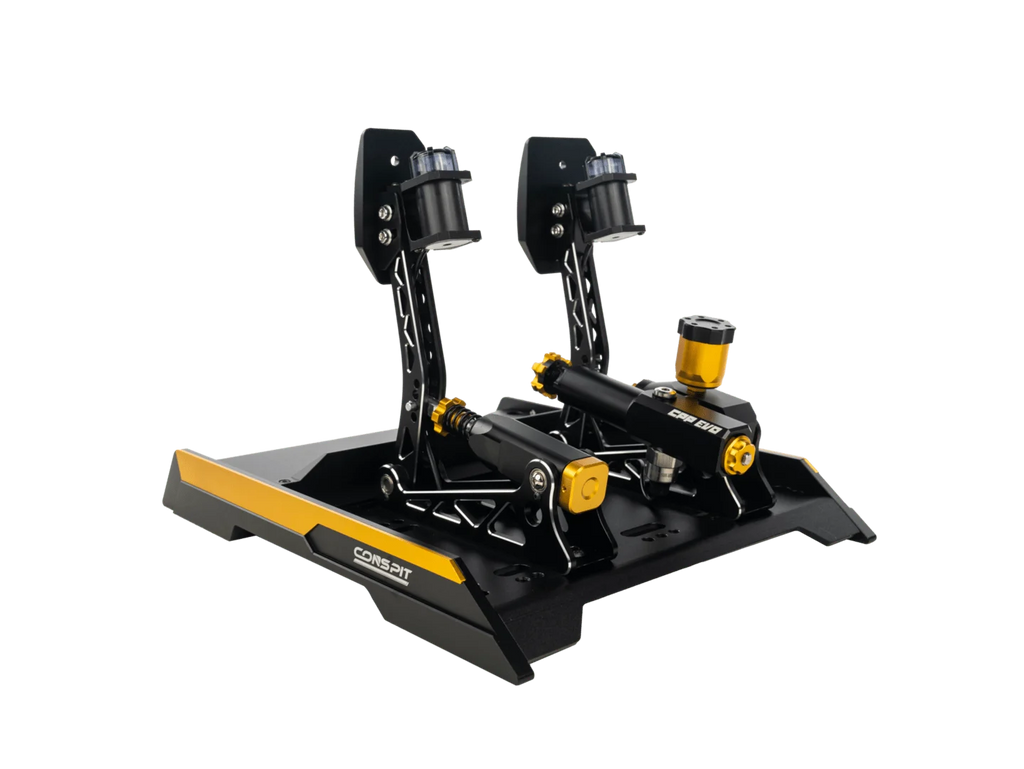

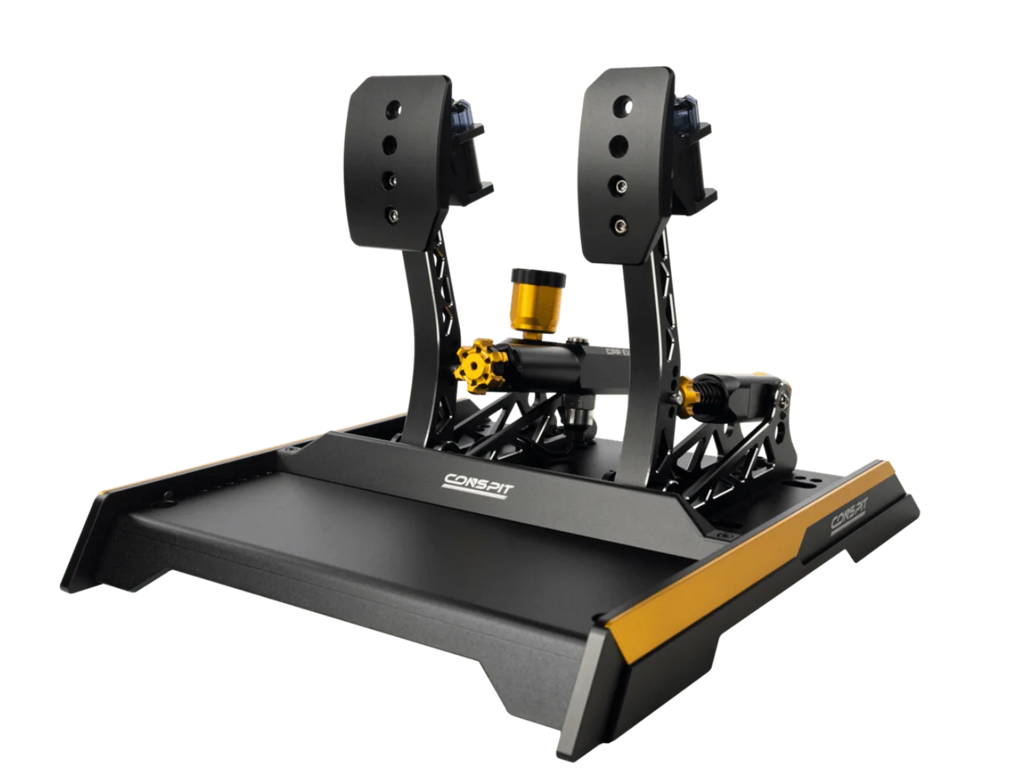

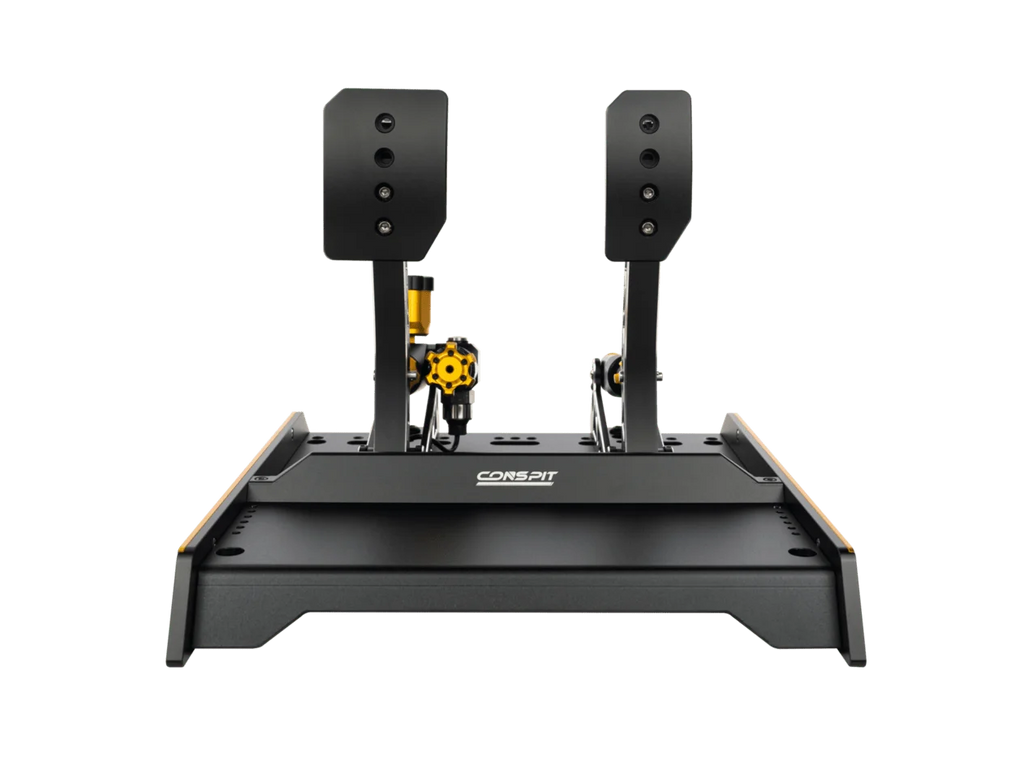

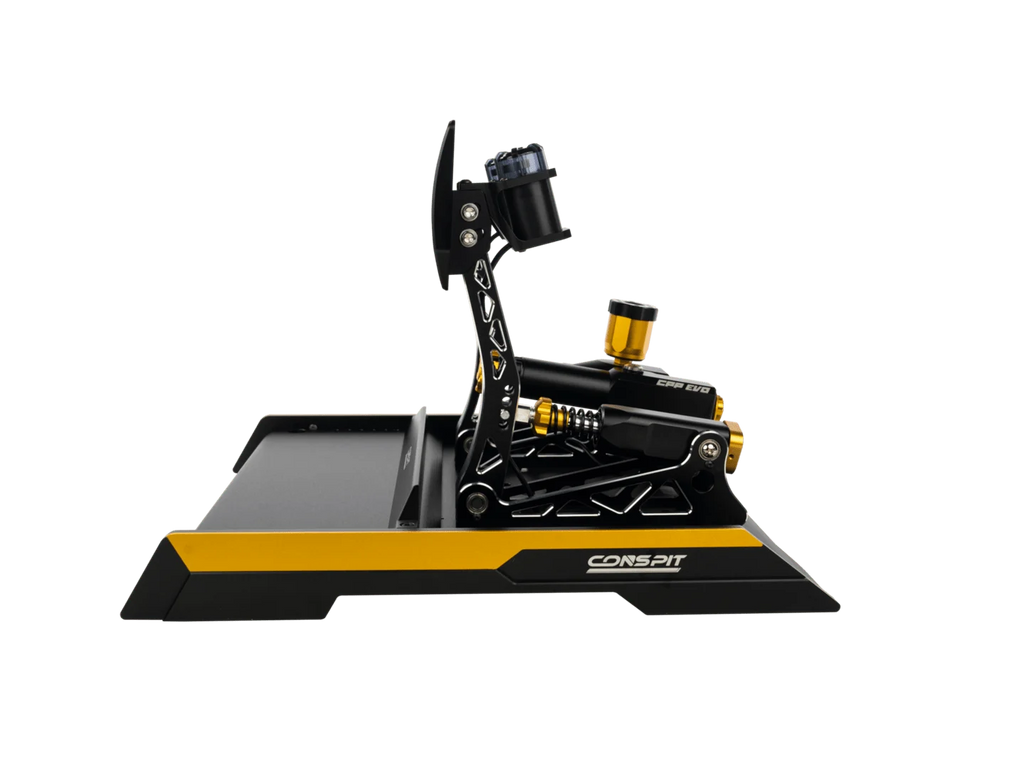

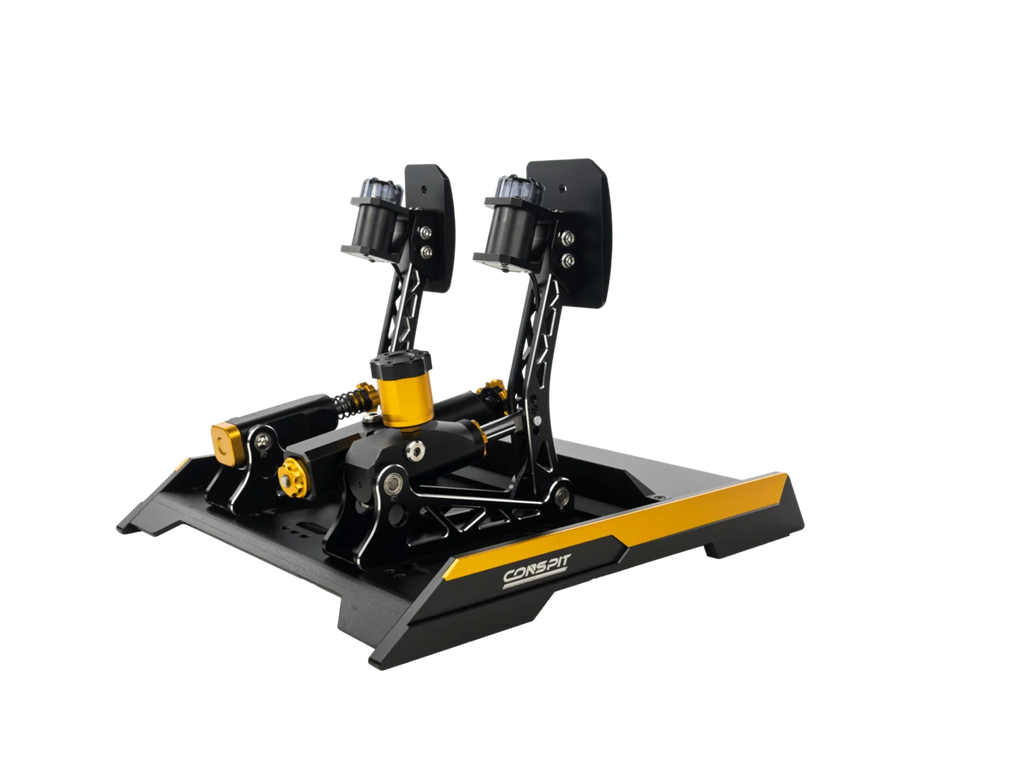

CONSPIT CPP-EVO 2 Pedals

CONSPIT CPP-EVO 2 Pedals

8 999 kr
5–10 days
Total
5–10 days

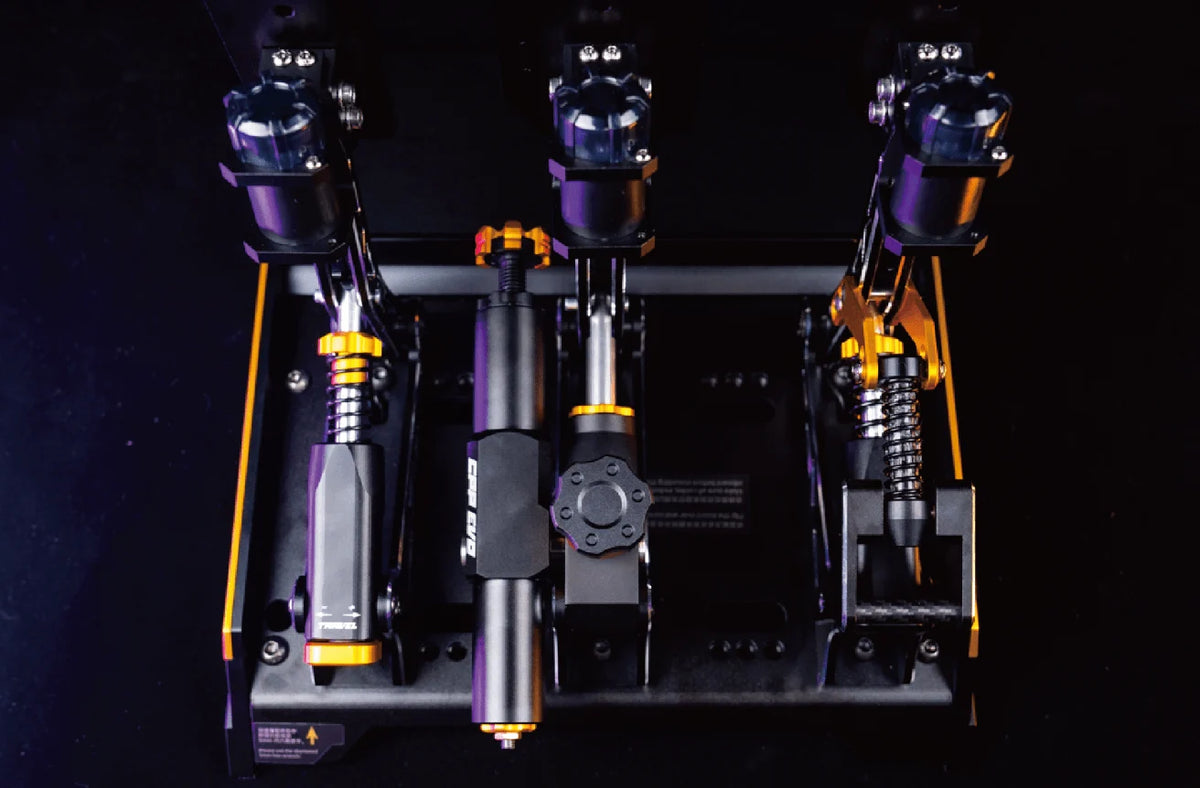

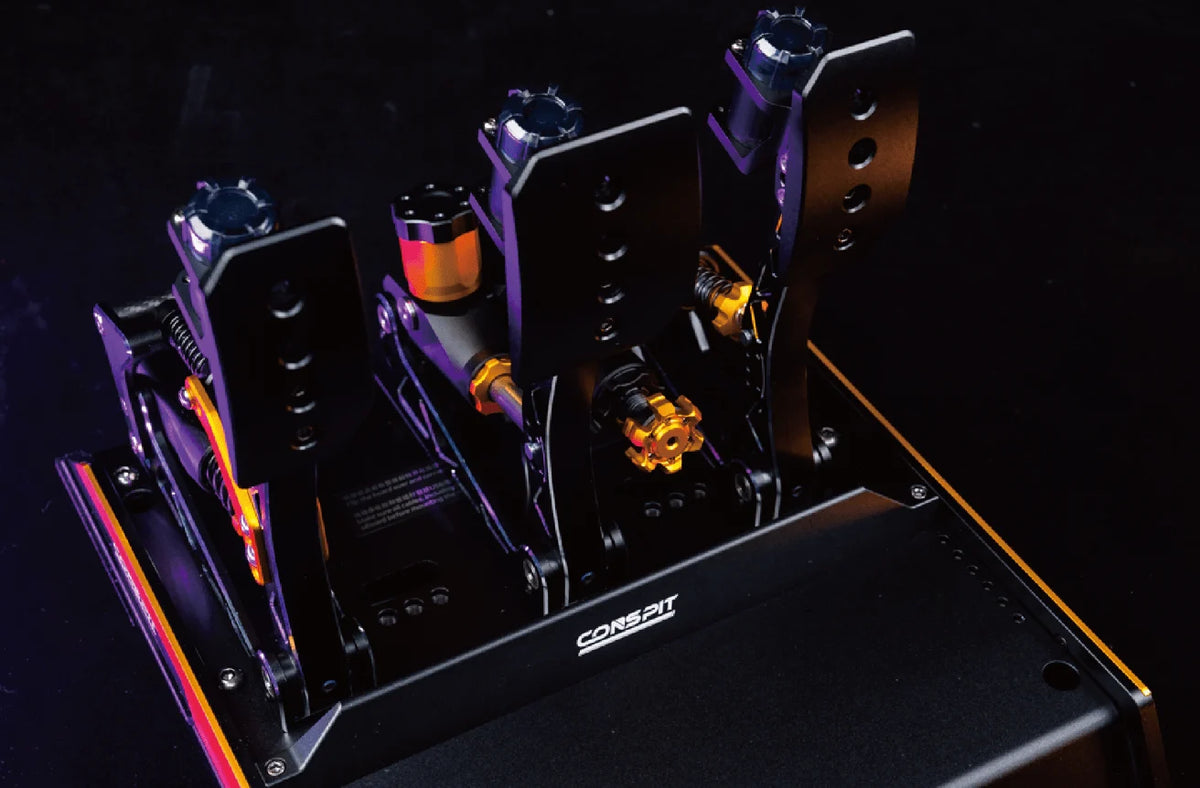

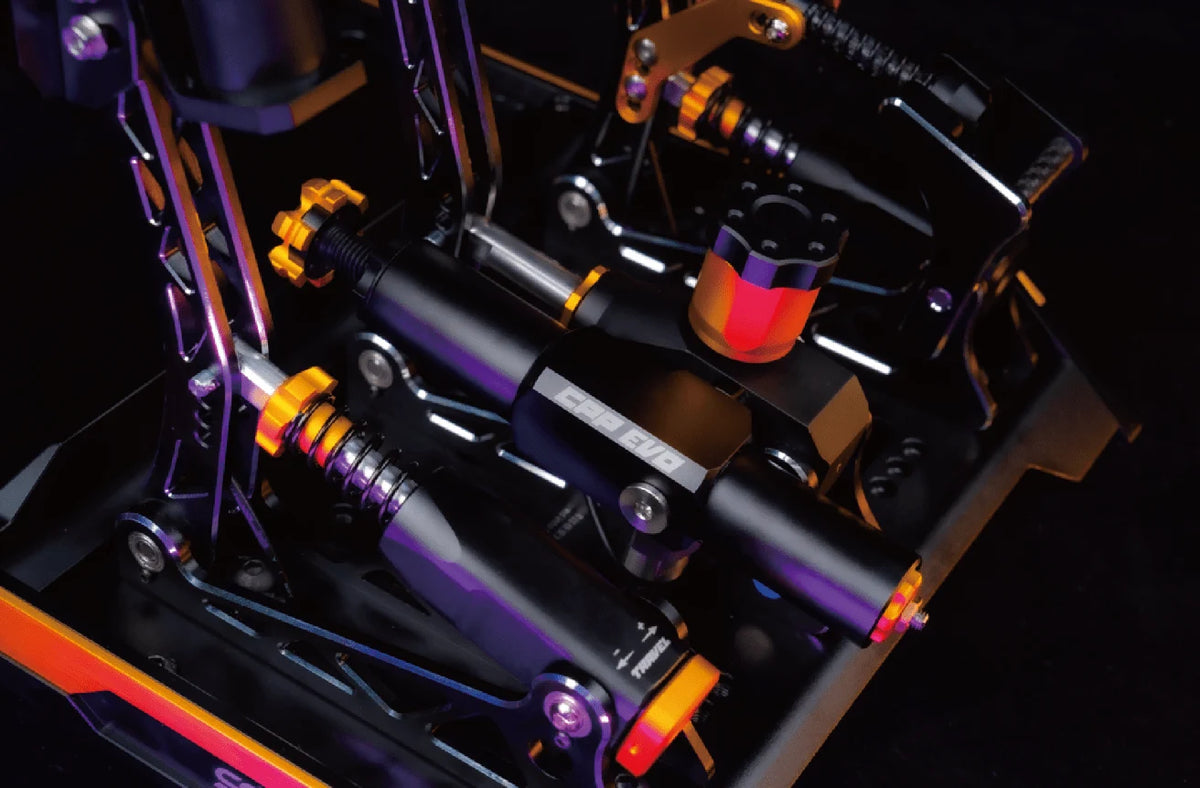

CONSPIT CPP EVO takes what made the CPP series a benchmark and elevates it. With an upgraded hydraulic system, chrome-plated steel piston, dual Step-Seal system, and a 20 MPa sensor, the CPP EVO delivers a brake feel with exceptional modulation and longevity – lap after lap.

Adjustability is built into everything: pedal spacing, angle, panel height, and footrest position – plus four stages of force adjustment on the throttle, brake, and clutch. The integrated M-DVF vibration feedback module provides direct feedback to your foot via SimHub.

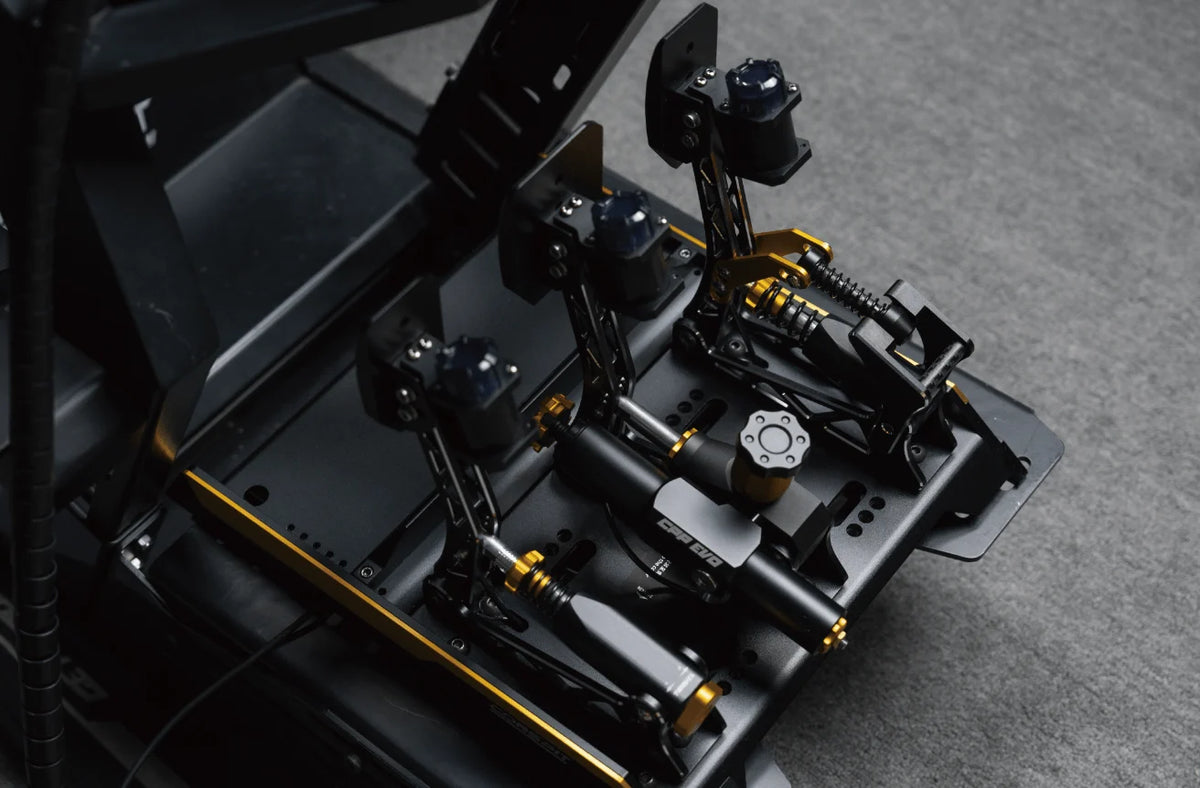

Can be mounted directly on GT-Lite, FP-Lite, GT-S, aluminum profile rigs, or other sim racing rigs. Connects to PC via USB or directly to the Ares series via Type-C.

Connectivity: USB Direct or CONSPIT CAN. Software: SimHub + CONSPIT Link 2.0.

Specifications

Product name: CPP EVO 2
Dimensions (L x W x H): 332 x 396 x 285 mm
Material: Aluminium alloy 6061-T6 (CNC-machined, sandblasted, anodized)
Max brake pressure: 200 bar
Sensor type: Hydraulic sensor, 20 MPa
Piston: Chromed 45-steel
Sealing system: Dual Step-Seal (O-ring + PTFE slide ring, up to 400 bar)
Platform: PC
Connection: USB Direct, CONSPIT CAN, Type-C (Ares-series)
Software: SimHub + CONSPIT Link 2.0
Vibration feedback: M-DVF modul (SimHub ShakeIt Motors)

Compatibility

PC (Windows) via USB Direct
Compatible with the CONSPIT CAN ecosystem
Direct connection to Ares-series via Type-C to Type-C cable (included)
SimHub compatible – supports ShakeIt Motors for vibration feedback
Mounting compatibility: GT-Lite, FP-Lite, GT-S, aluminium profile-rigs
Configured via CONSPIT Link 2.0 (mapping curve, brake limit, etc.)

In the package

CONSPIT CPP EVO 2 Pedal set x1, USB cable x1, Type-C to Type-C cable x1

Maintenance

Clean with a dry microfiber cloth
Avoid solvents on all surfaces
Regularly check that mounting screws are tightened
Keep hydraulic couplings free from dirt
Update firmware regularly via CONSPIT Link 2.0
Contact support in case of unusual noises or leaks
