SIMEDGE RANGE · 9–35 NM
Direct Drive Wheelbases
A Direct Drive wheelbase connects the steering wheel directly to the motor for fast, detailed force feedback. Explore versatile mid-range models, advanced enthusiast options and powerful high-end systems from Simagic, Simucube, MOZA and CONSPIT for Formula, GT, rally and drifting.
-

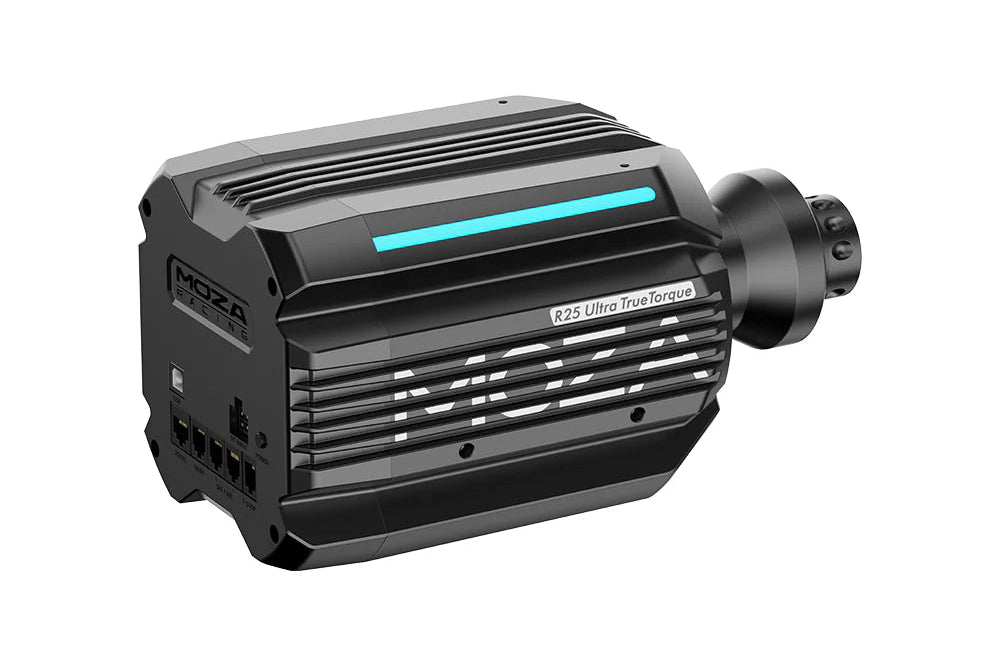

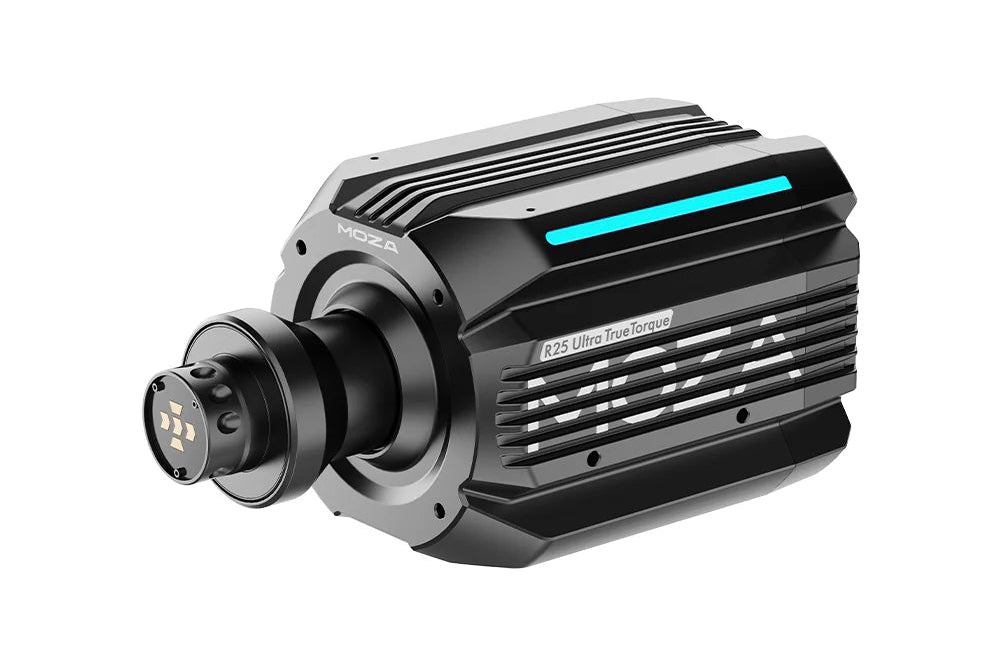

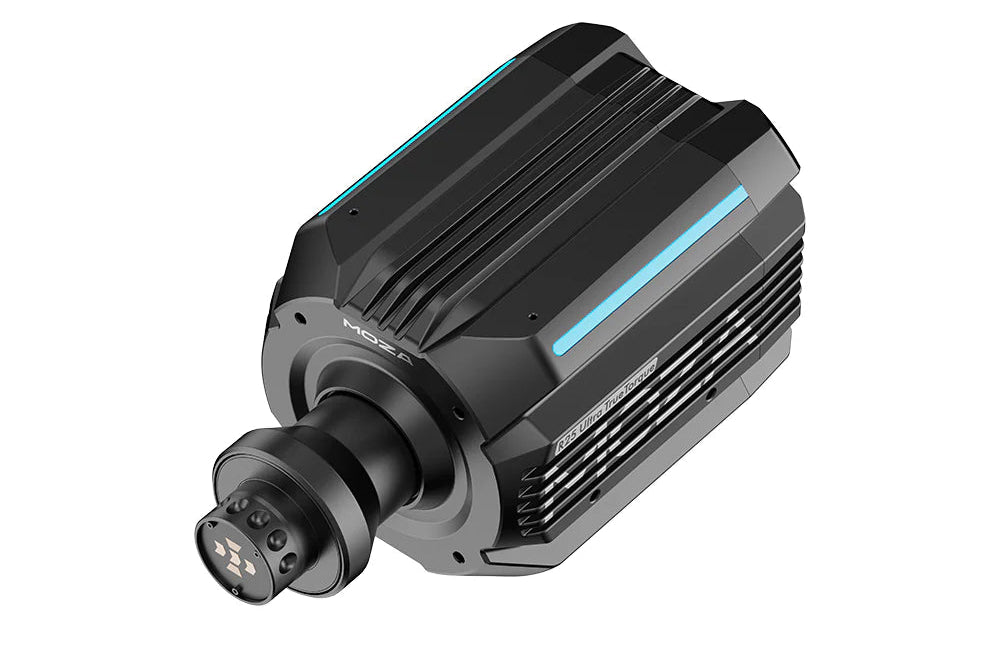

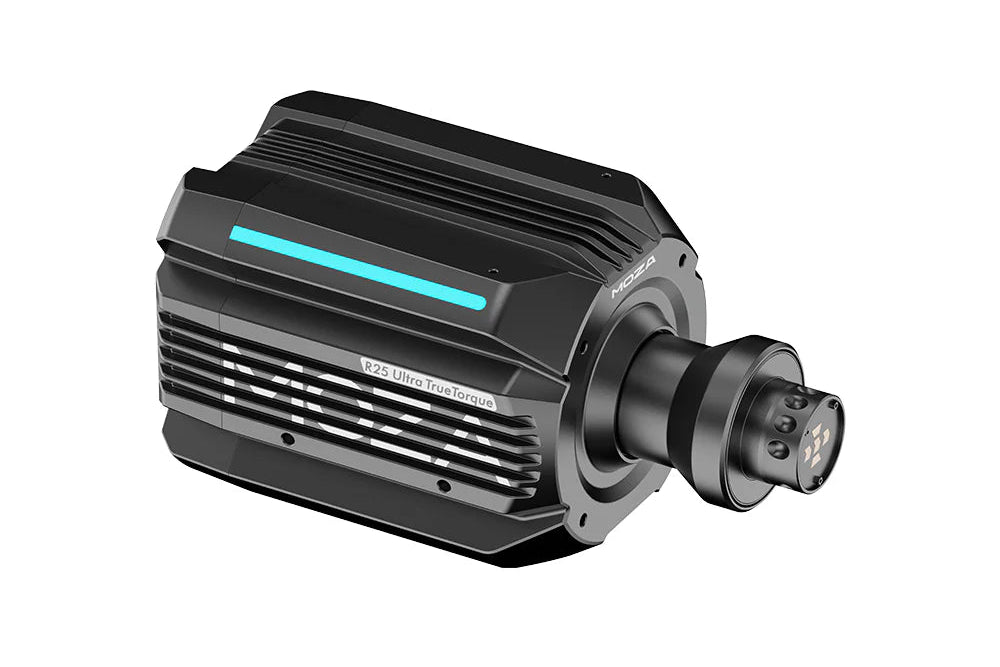

MOZA R25 Ultra -
MOZA R21 Ultra -
Simucube 3 Pro 25 Nm -

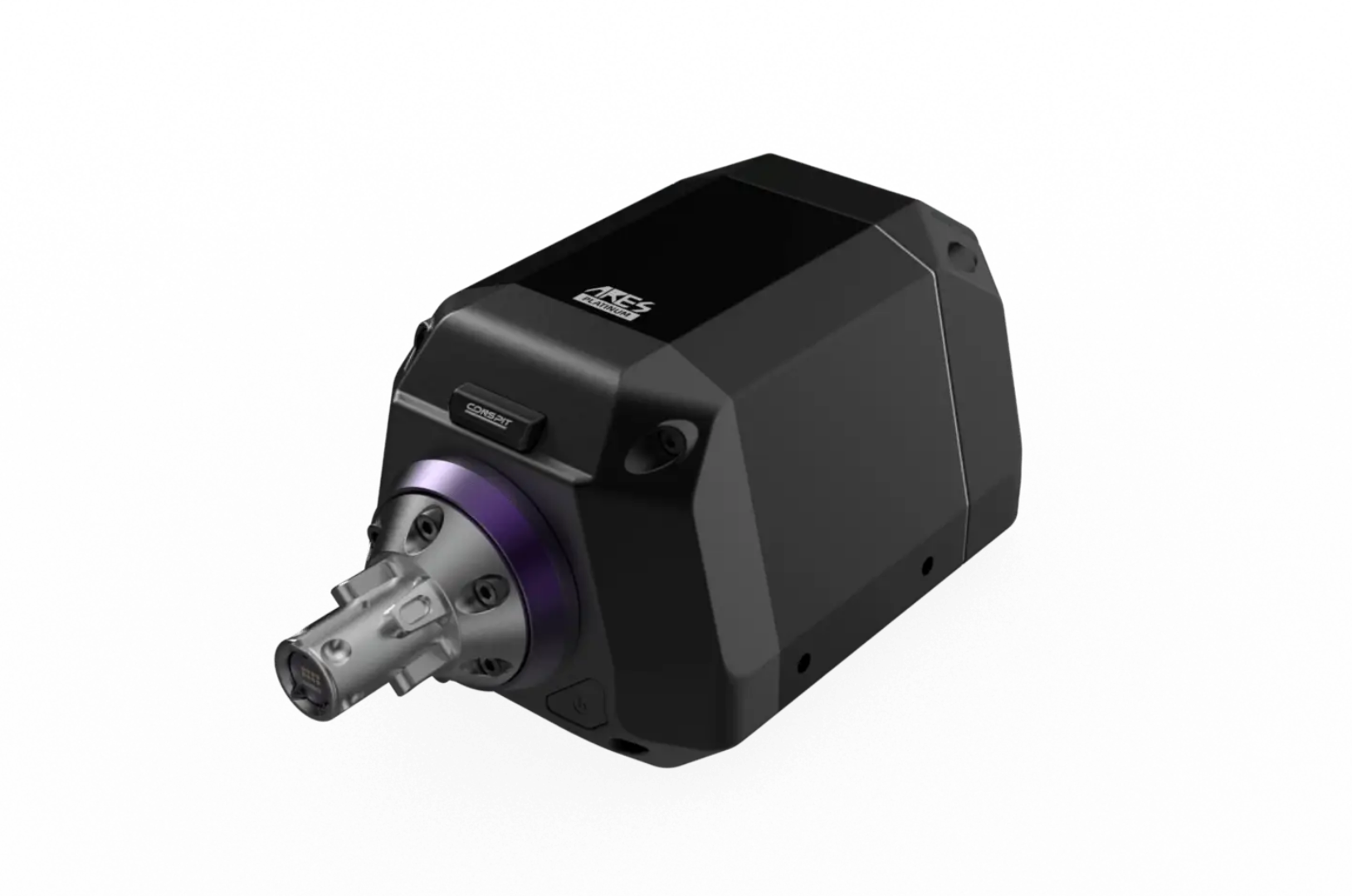

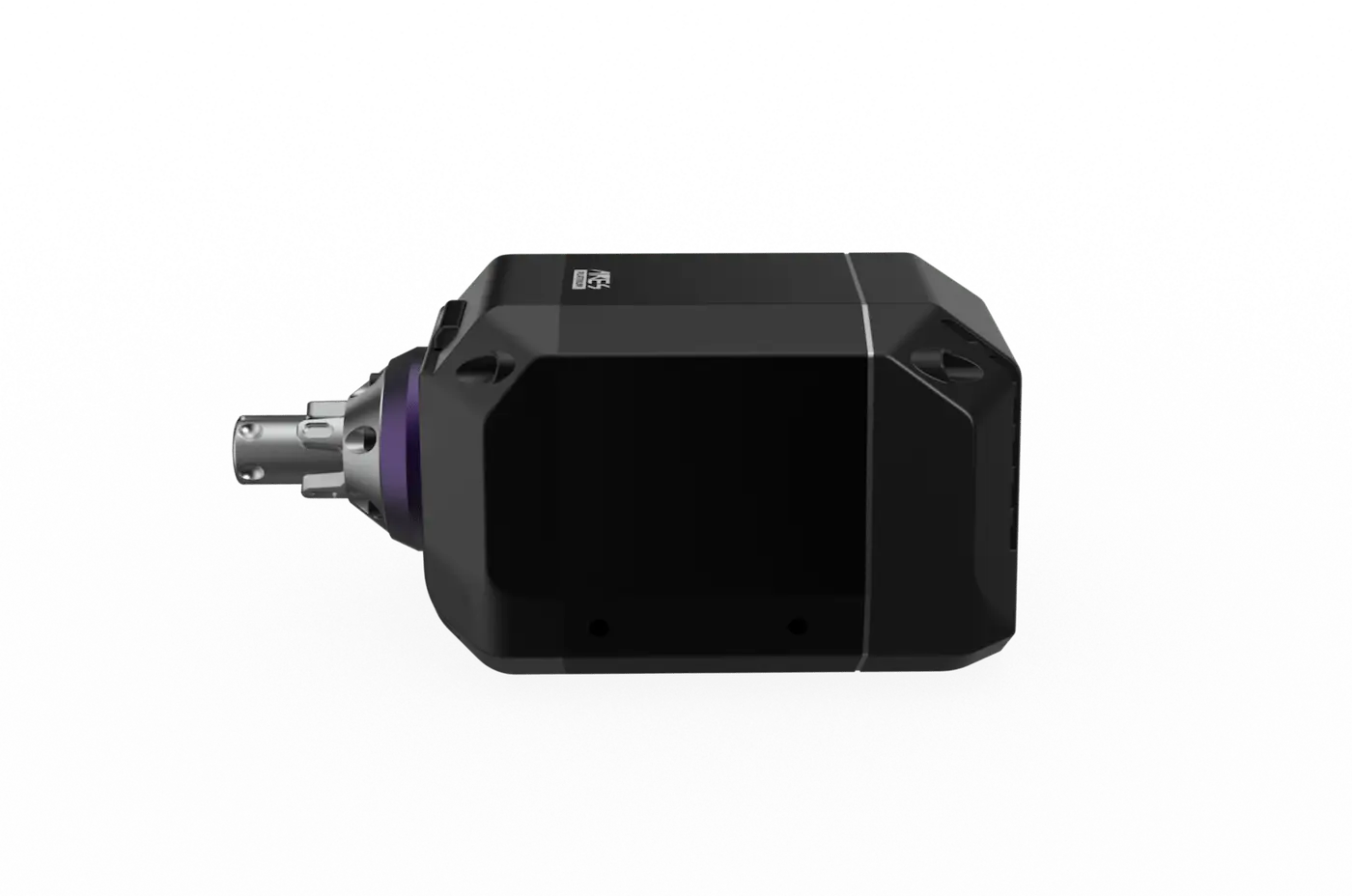

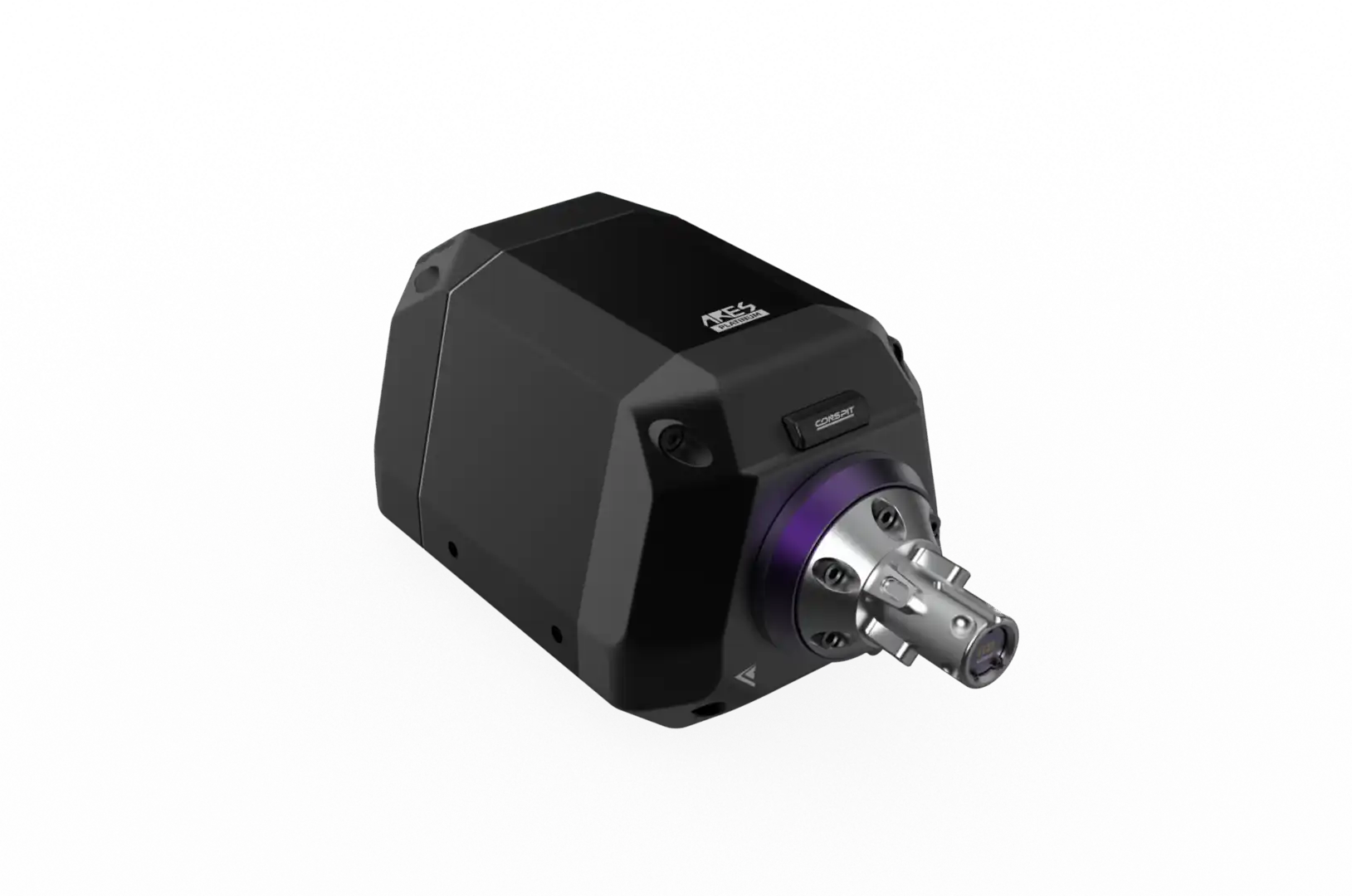

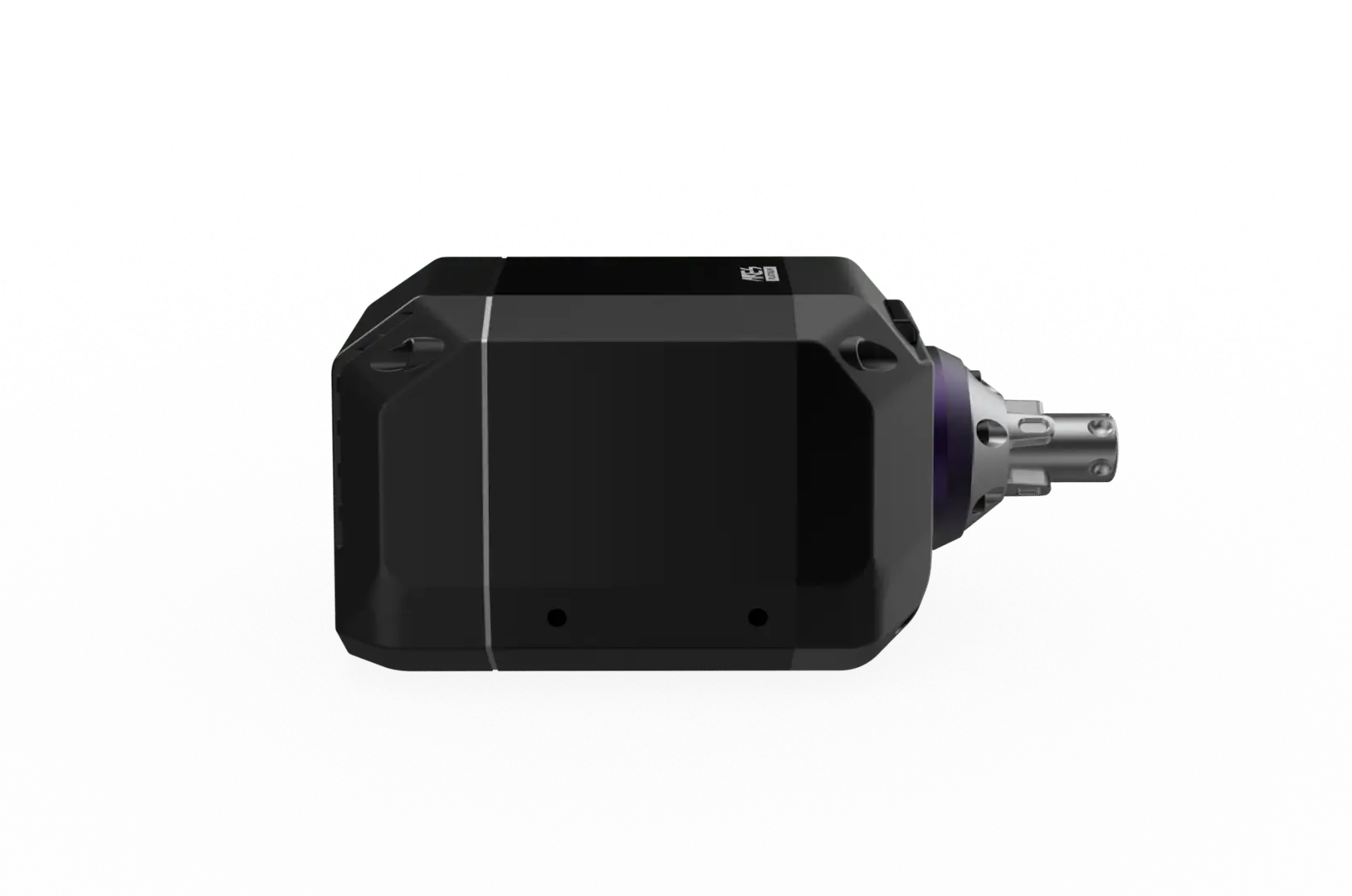

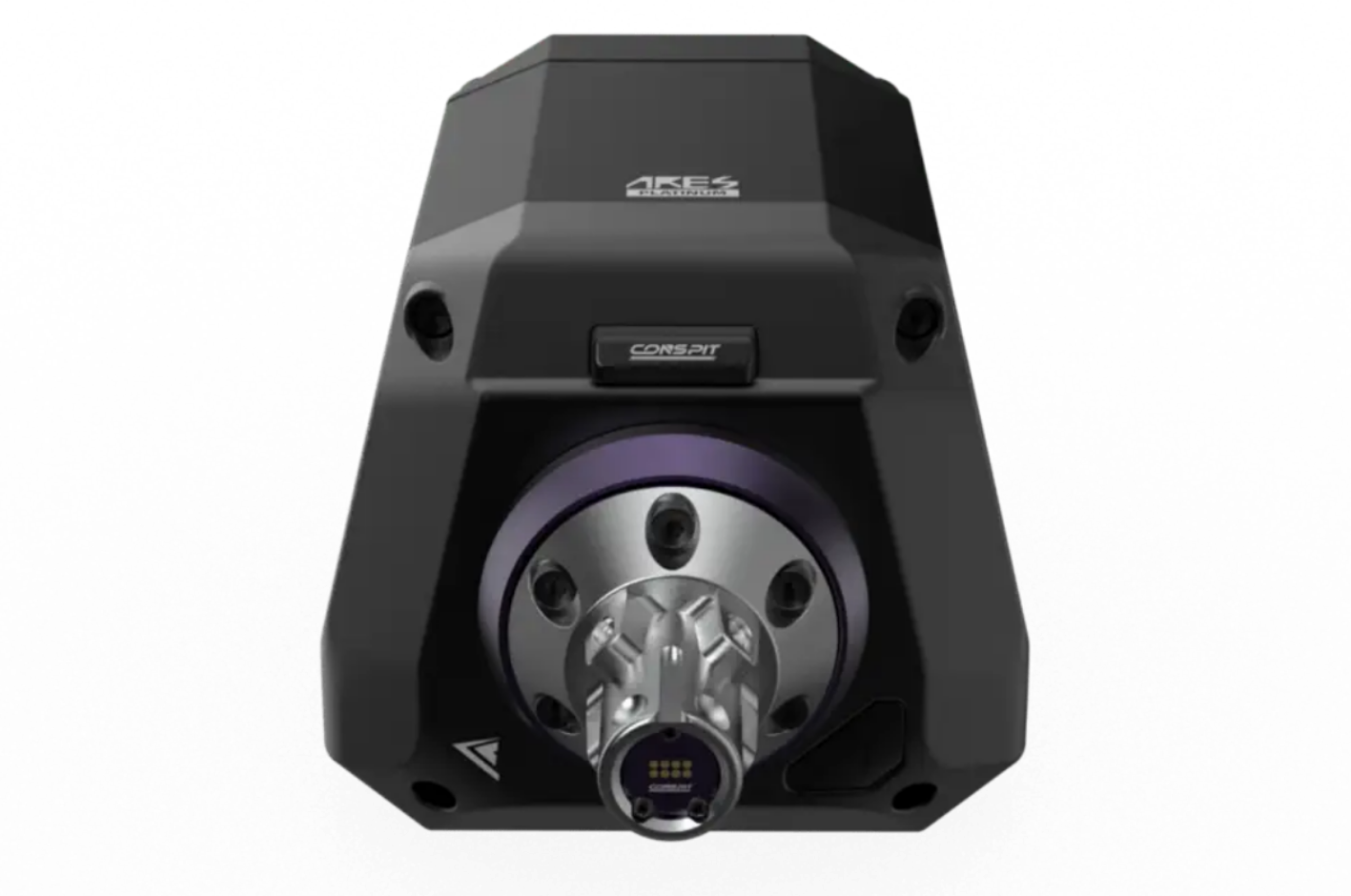

CONSPIT ARES 20 Platinum -
CONSPIT ARES 12 -

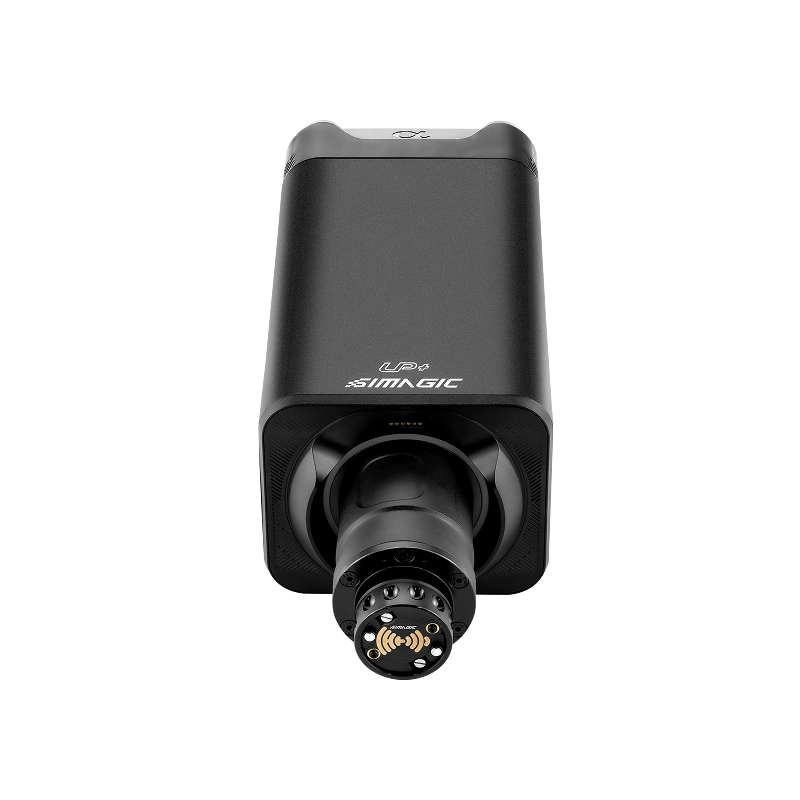

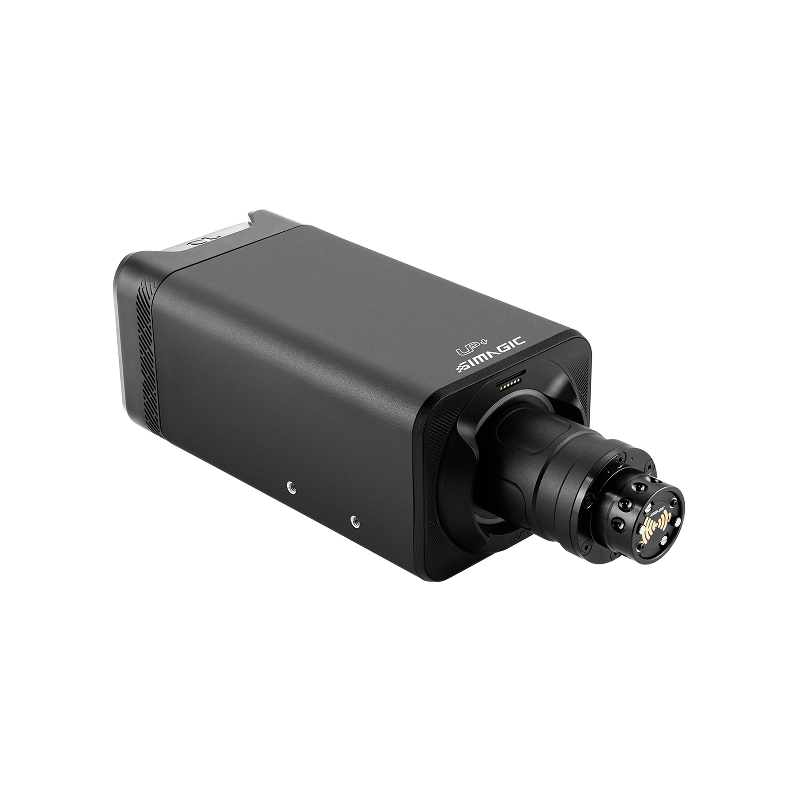

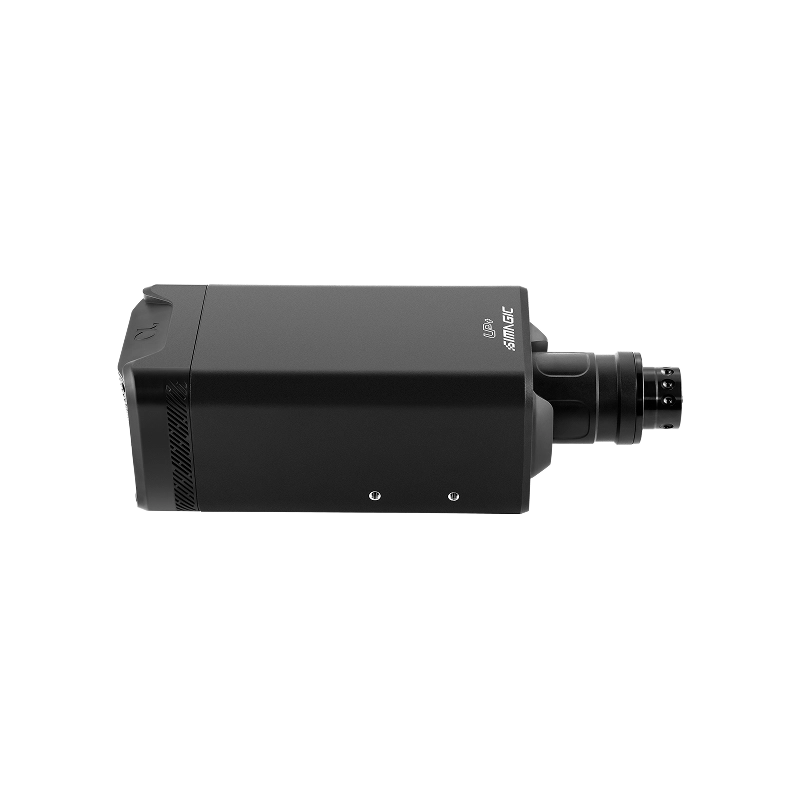

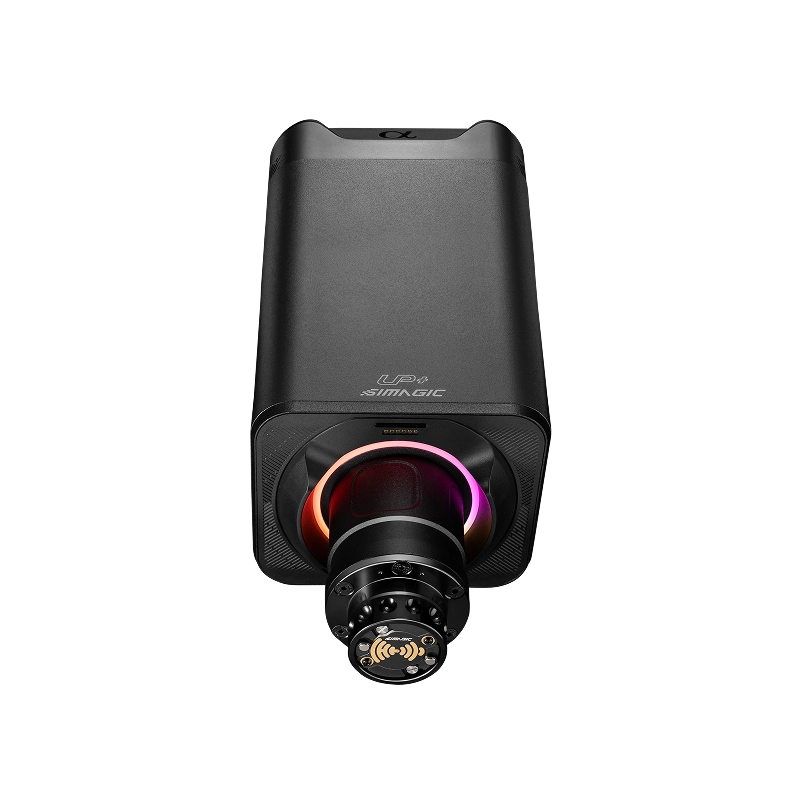

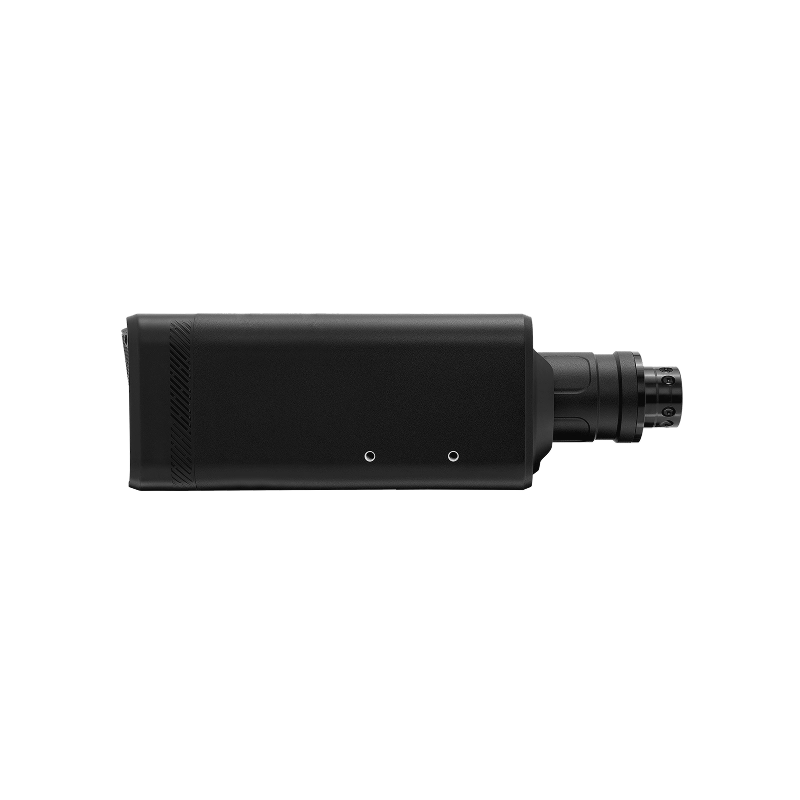

Simagic Alpha EVO Ultra 28 Nm -
Simagic Alpha EVO Sport 9 Nm -
Simucube 3 Ultimate 35 Nm -
-
Simucube 3 Sport 15 Nm -
MOZA R16 Ultra Direct Drive Wheel Base – 16 N·m -

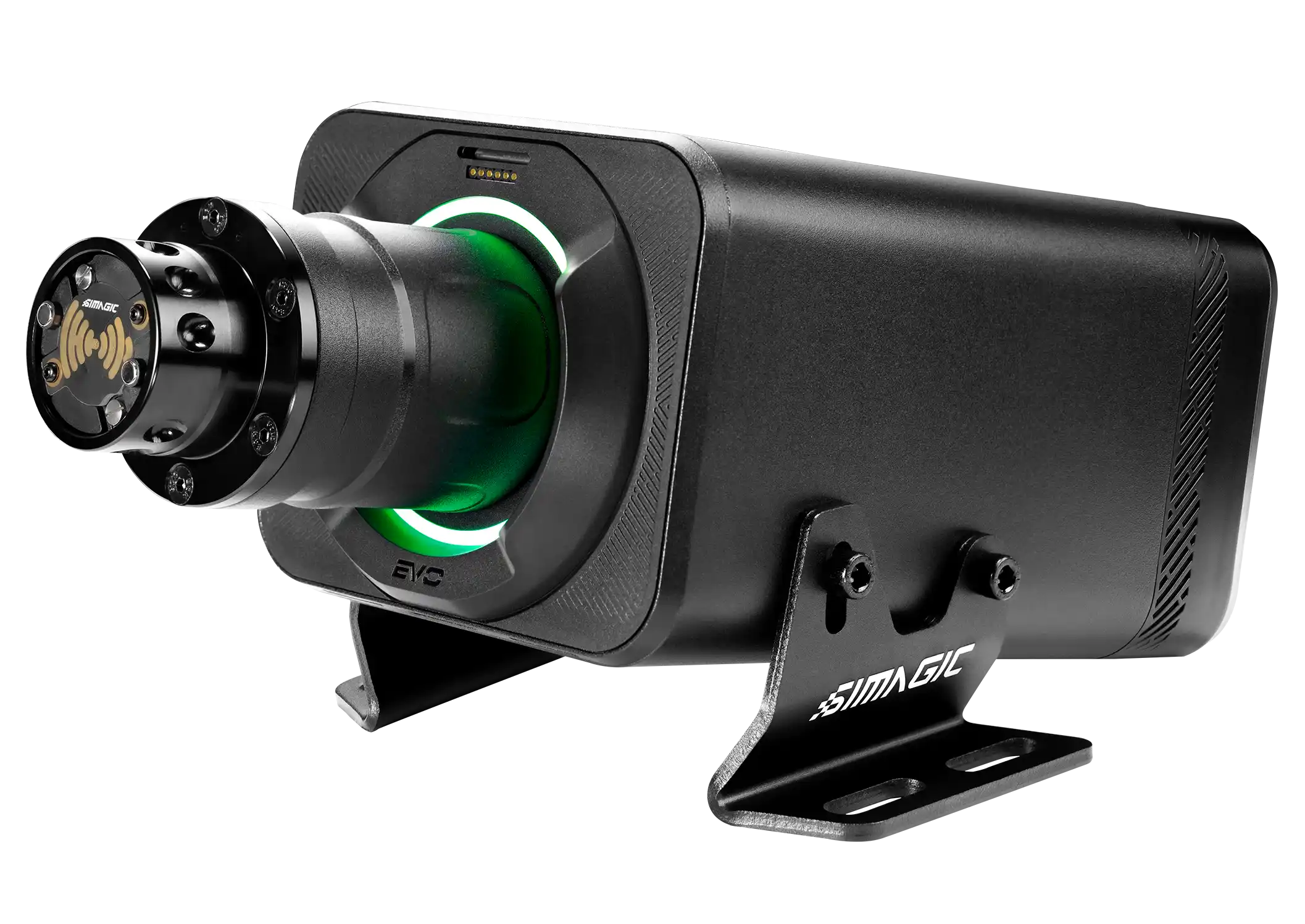

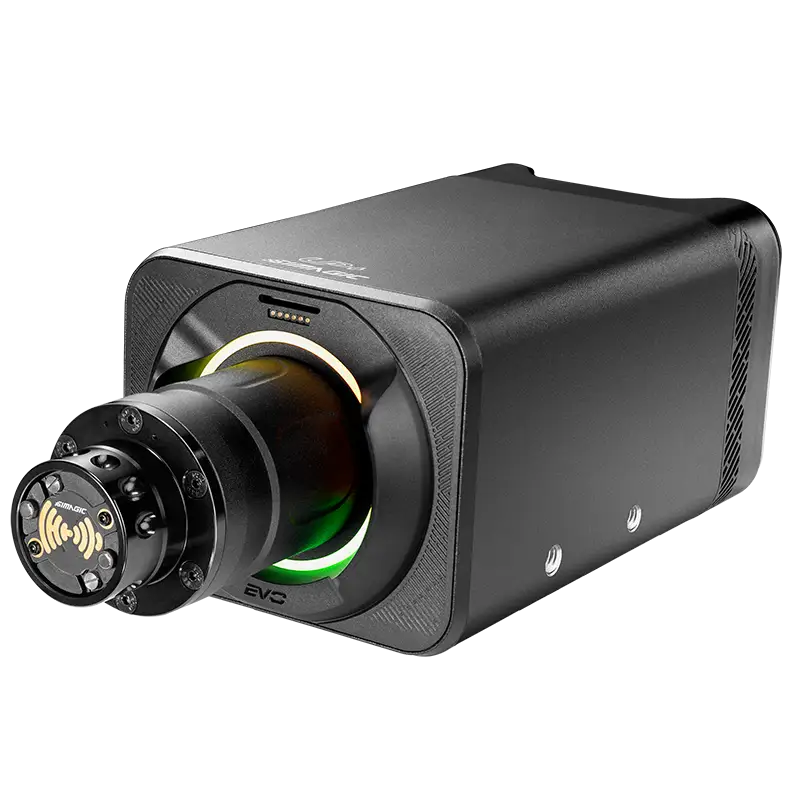

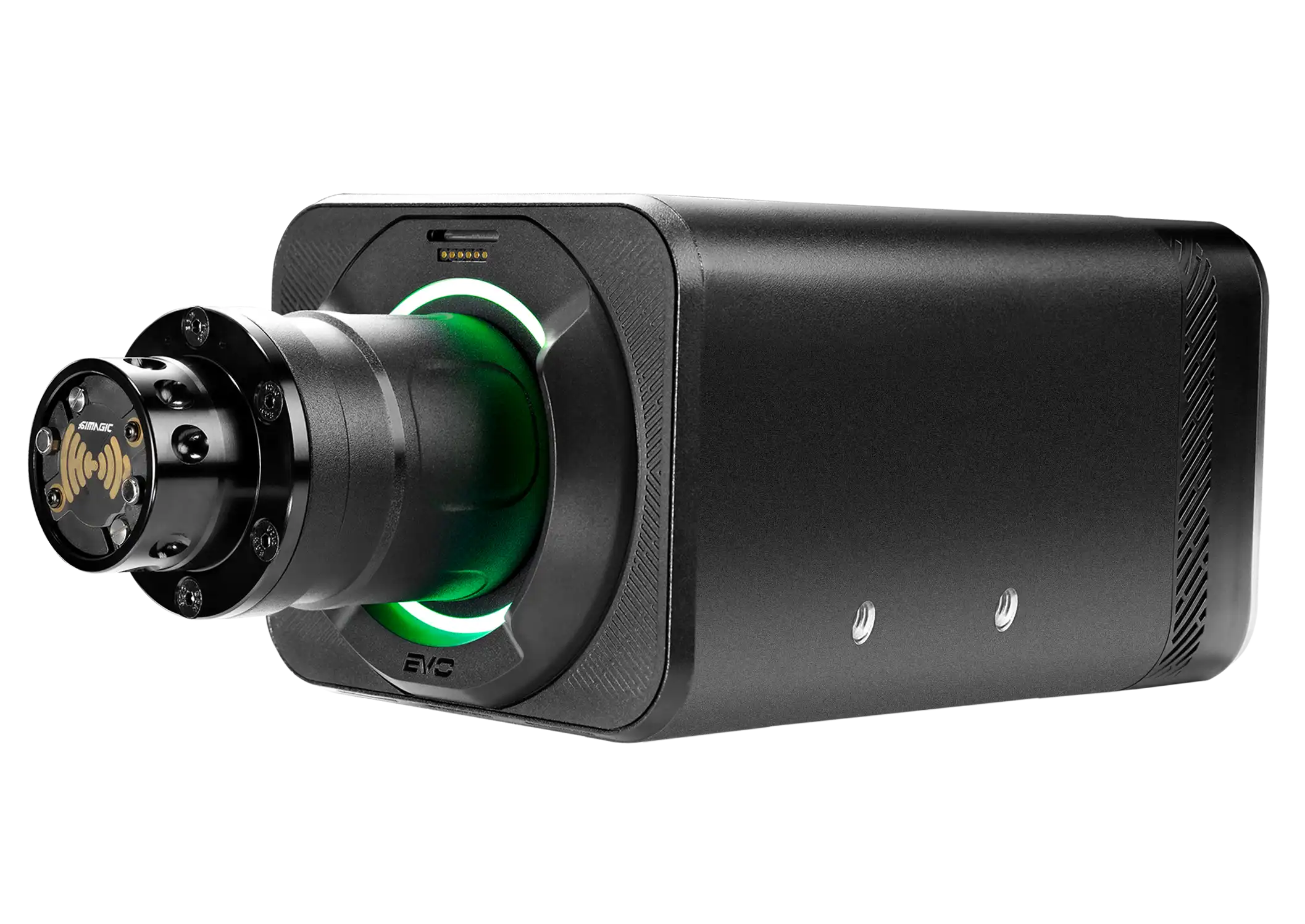

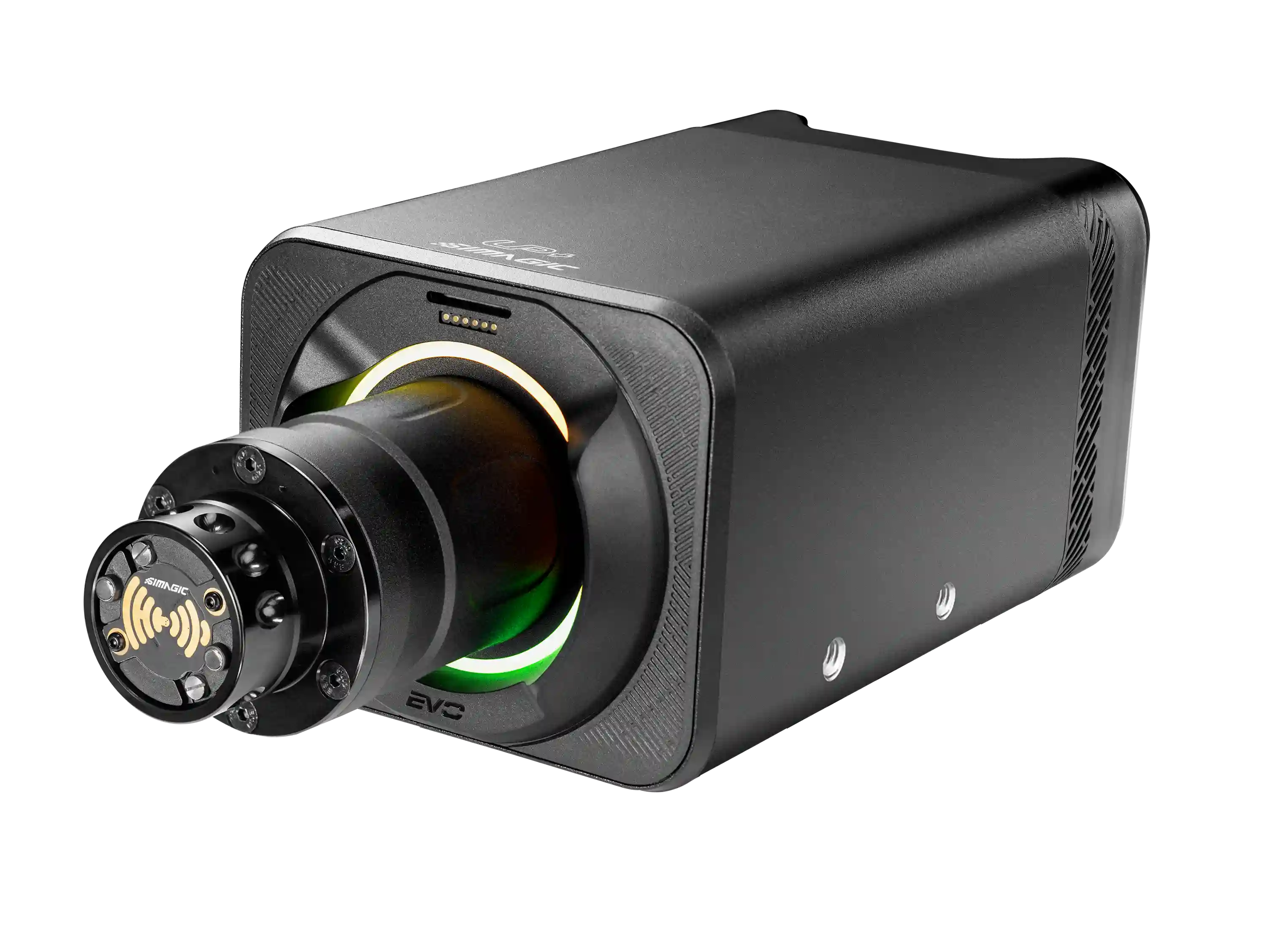

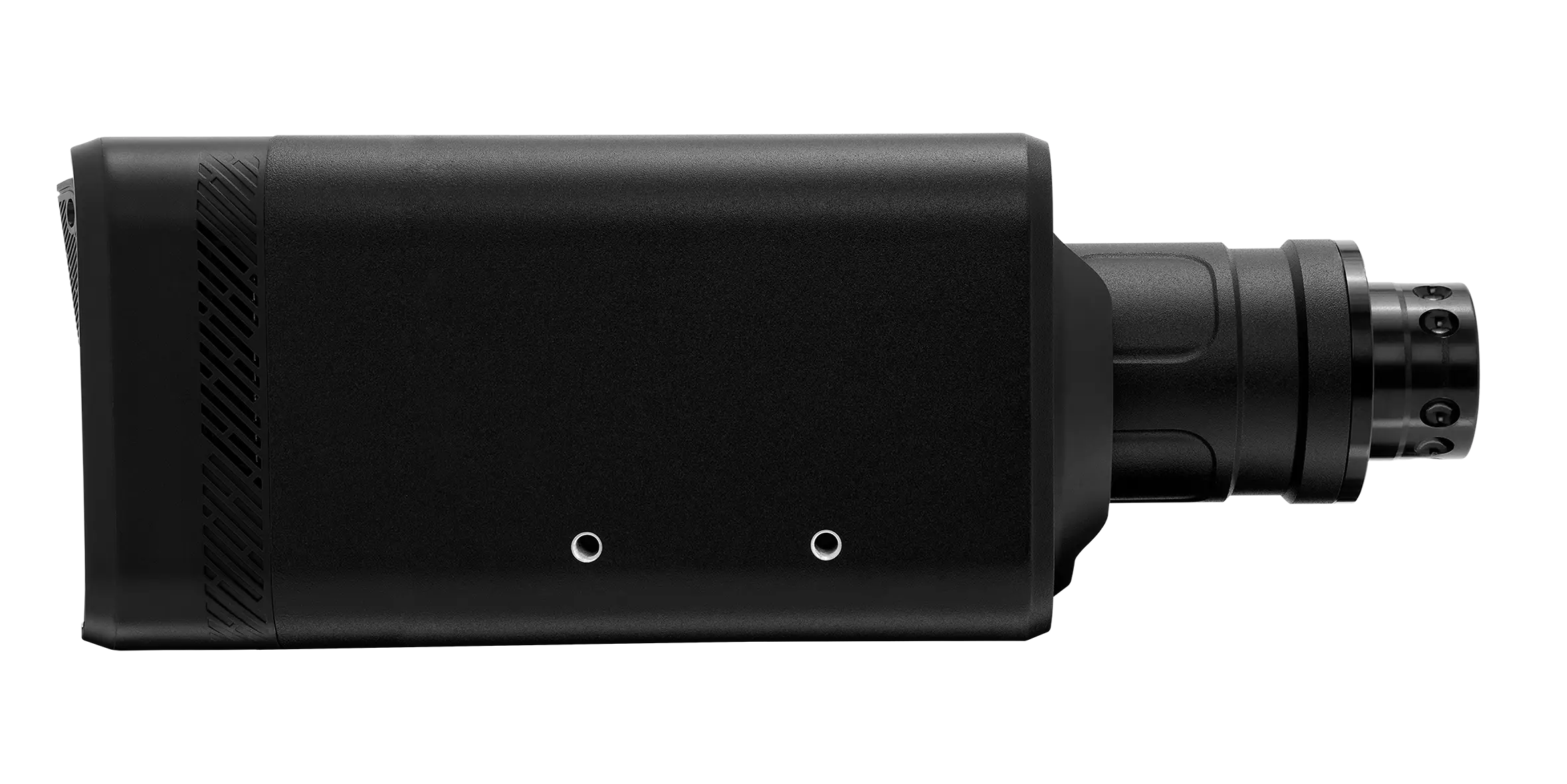

Simagic Alpha EVO Pro 18 Nm -

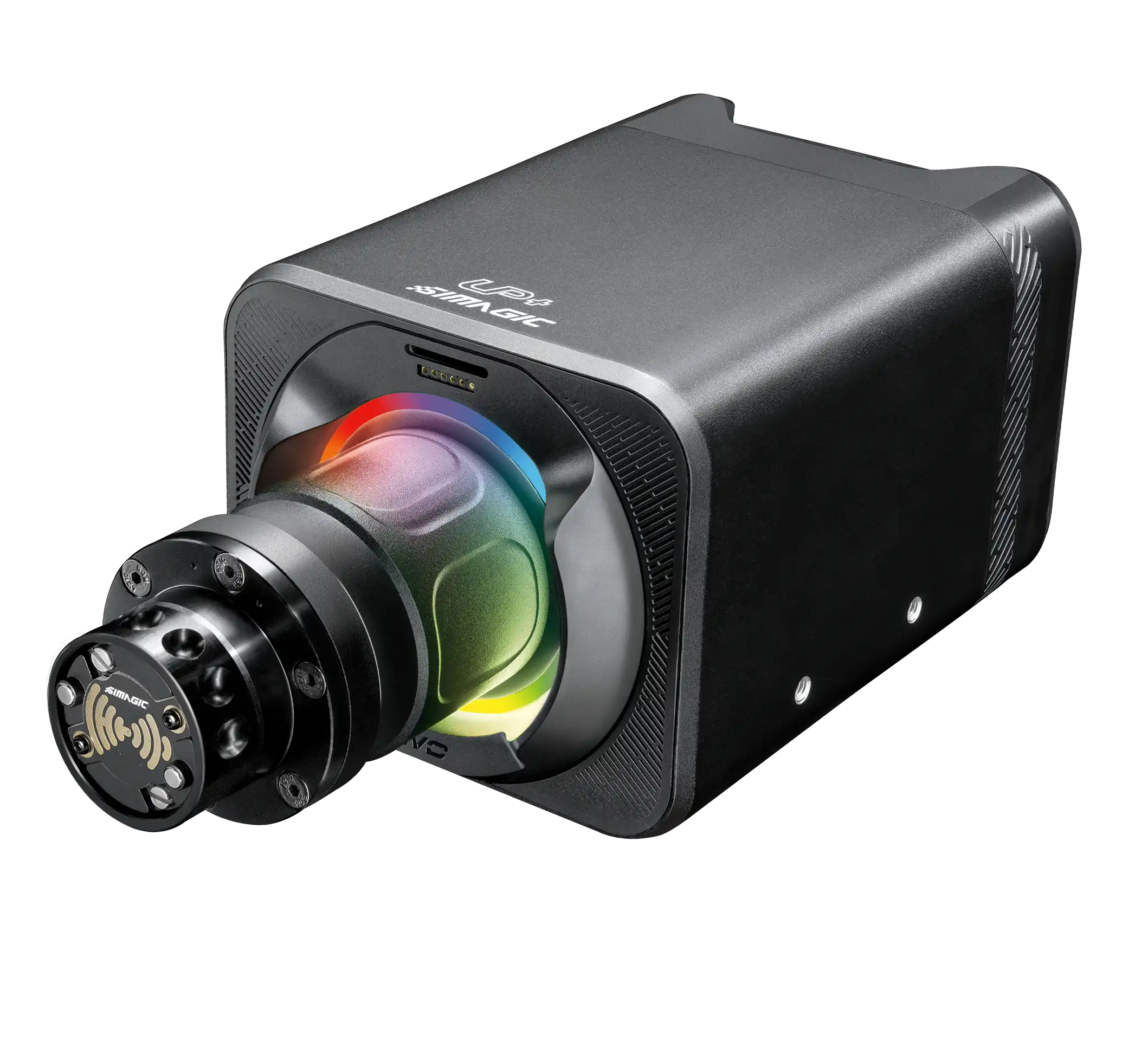

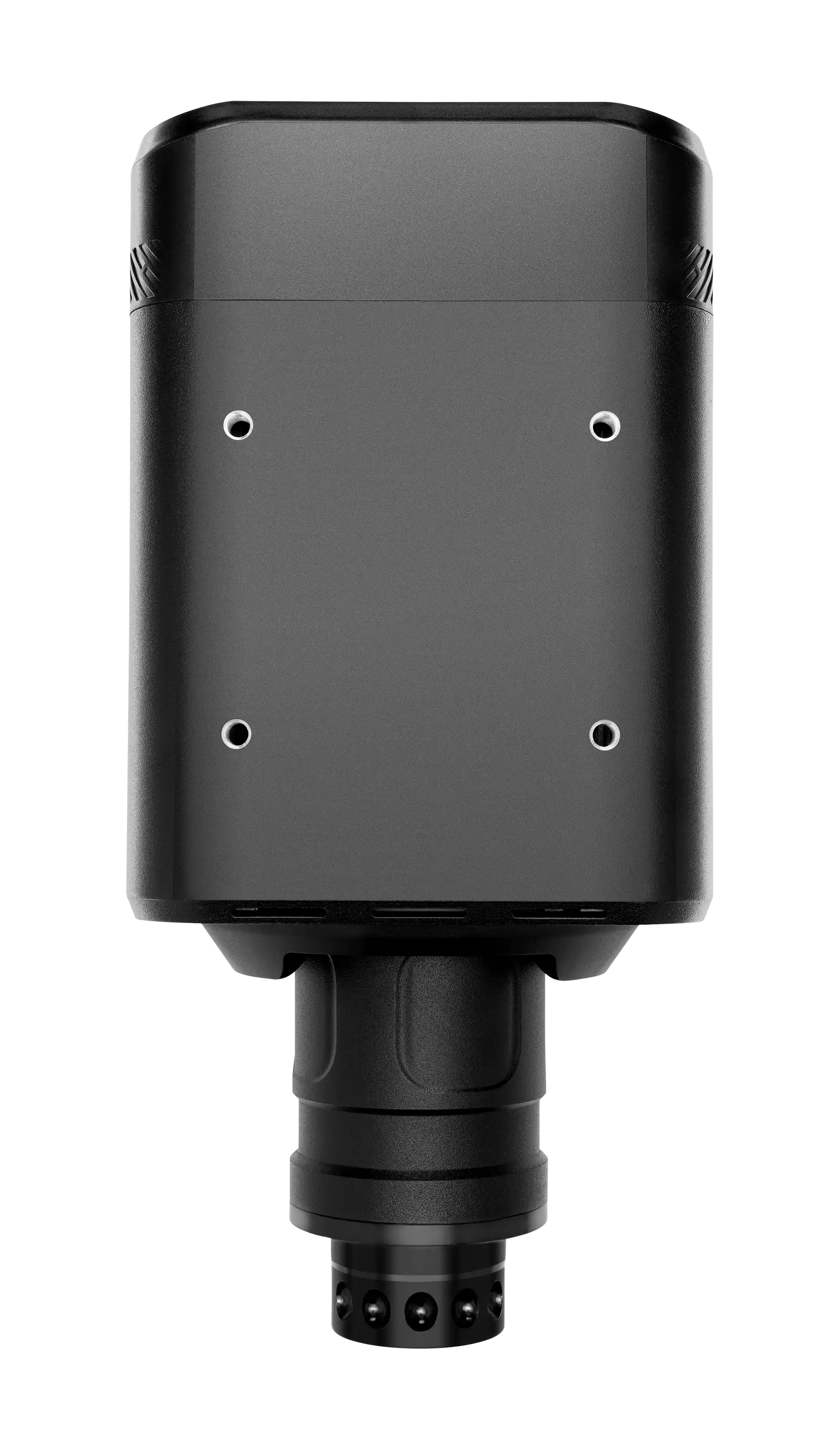

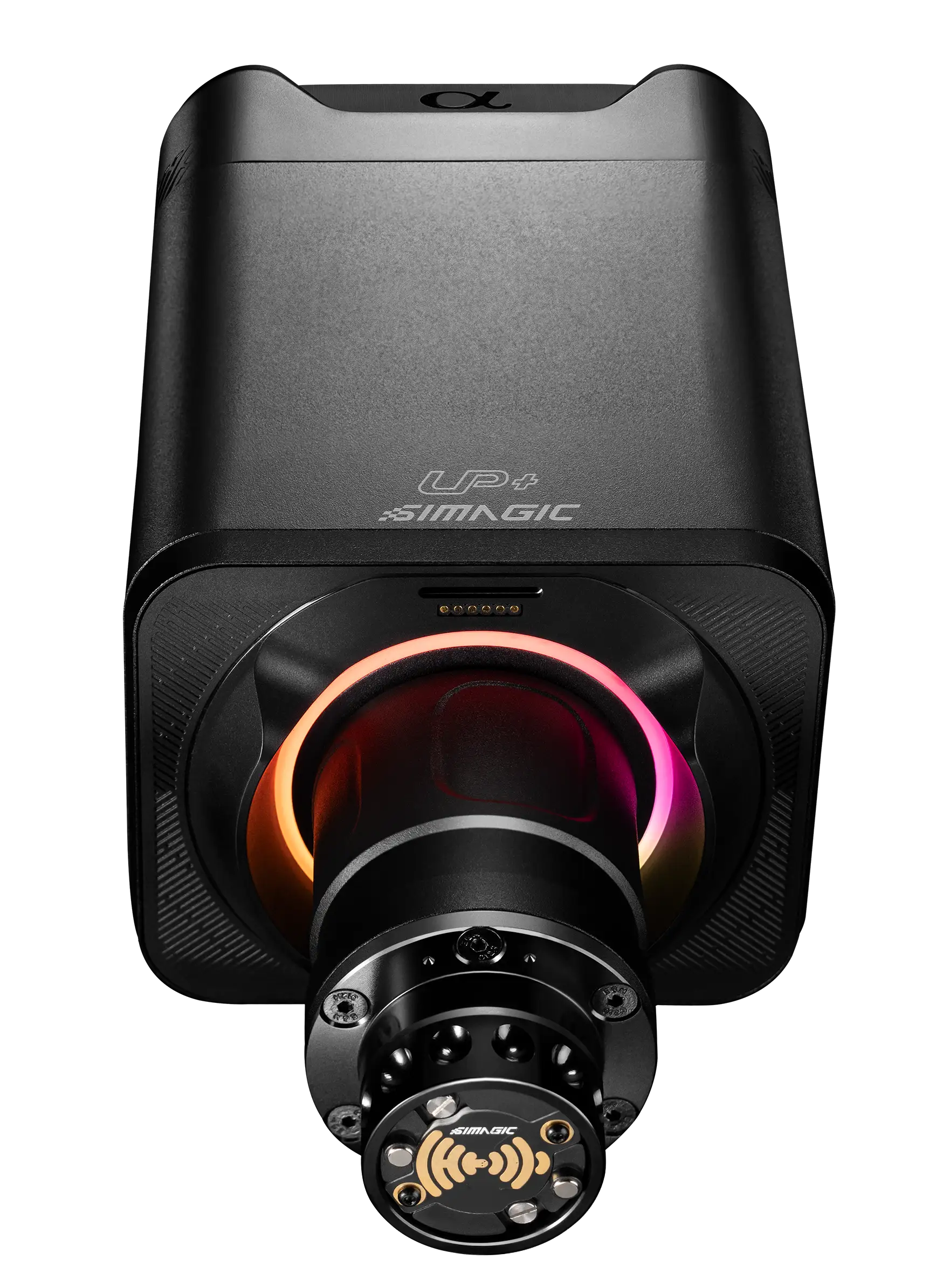

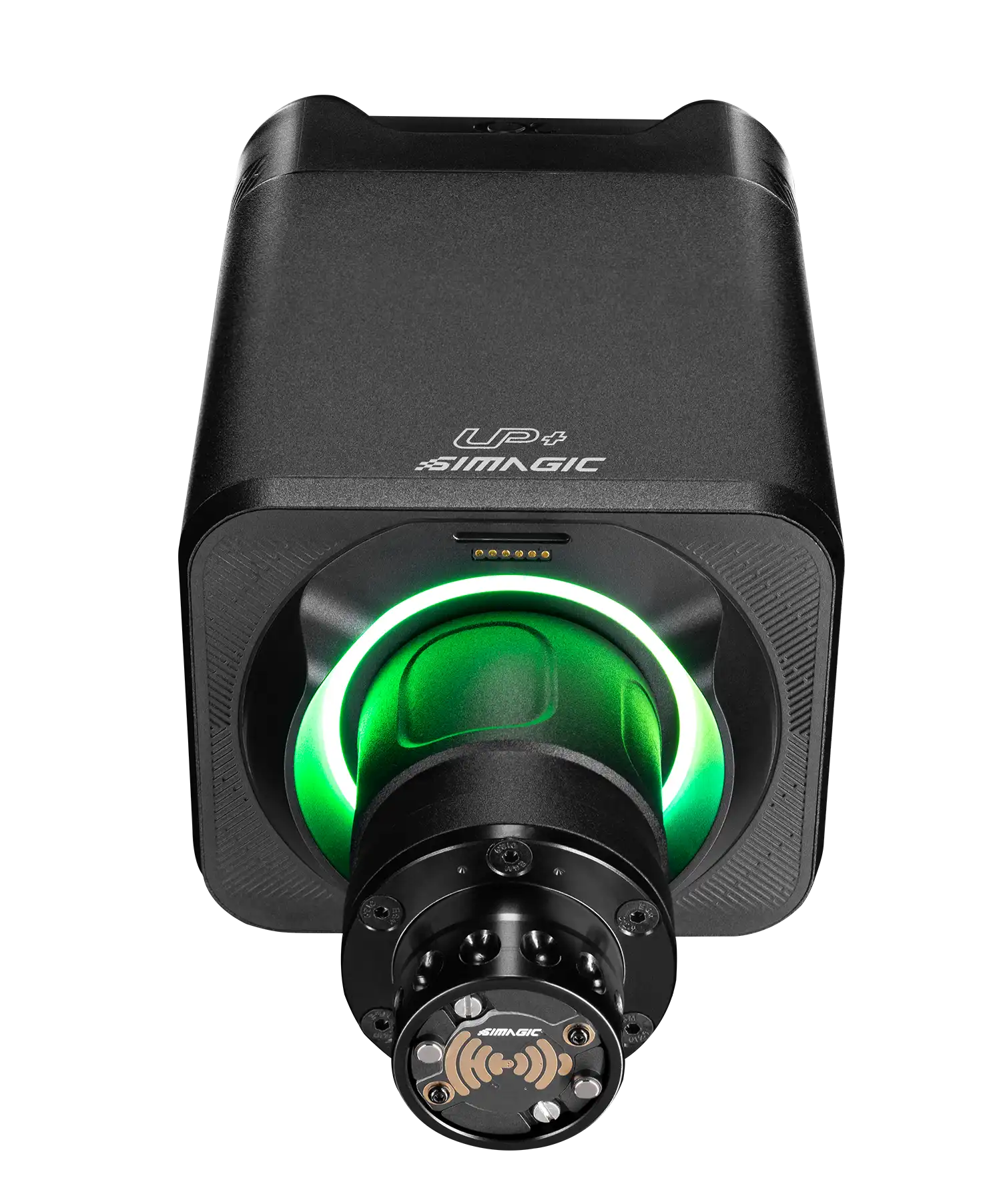

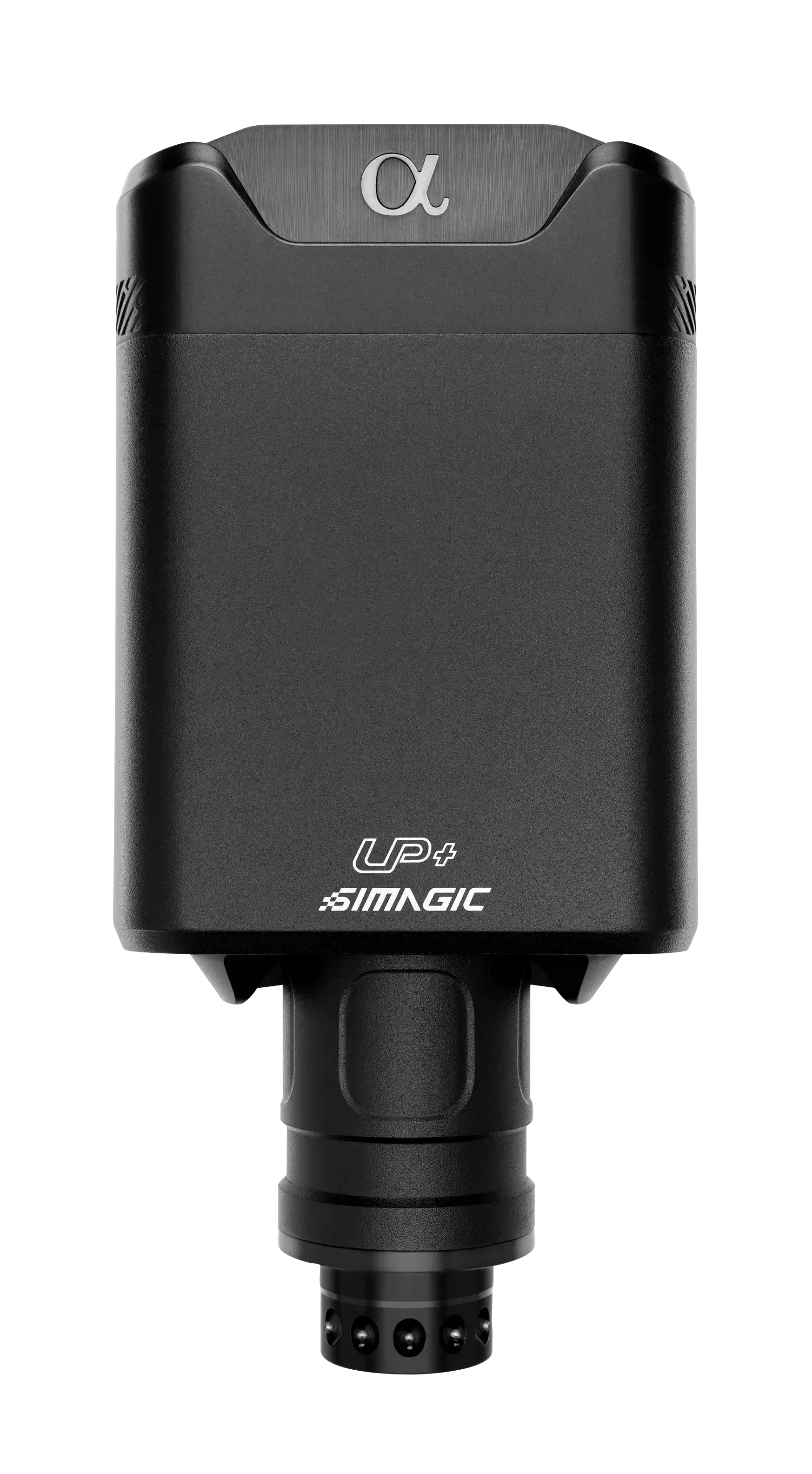

Simagic Alpha EVO 12 Nm -
MOZA R9 V3 Direct Drive Wheel Base – 9 Nm -
MOZA R5 Racing Bundle – 5.5 Nm -
MOZA R12 V2
BUYING GUIDE
Which Direct Drive wheelbase should you choose?
There is no formally defined standard for torque classes, but today's Direct Drive market follows clear and established power segments. Choose according to your cockpit, steering wheel and desired headroom, not simply the largest number.
5–8 Nm – entry level
The established entry point to Direct Drive. A clear step up from belt- and gear-driven systems, with moderate force and often less demanding mounting requirements. Always follow the manufacturer's instructions for cockpit or desk mounting.
9–12 Nm – mid-range
A common and versatile mid-range for drivers ready to step up from entry-level models. It suits a broad selection of Formula, GT and rally wheels. For larger or heavier wheels and stronger FFB settings, 15–18 Nm is the next natural step. A rigid cockpit is recommended.
15–18 Nm – advanced enthusiast
For drivers who want stronger forces and greater headroom against clipping. This class provides more scope for larger or heavier wheels and powerful settings. It requires a rigid cockpit and carefully considered FFB settings.
20–25 Nm – high-end
The high-end class offers substantial torque headroom and can reproduce strong peaks without operating close to maximum output. It suits experienced users seeking serious capacity and requires a very rigid mounting solution.
27–35 Nm – extreme and specialist
The most powerful market segment, built for maximum headroom and very high force levels. Full output is rarely used continuously, but the capacity provides extensive tuning range. Secure mounting and the manufacturer's safety procedures are essential.
Torque is not the whole experience
Motor control, encoder resolution, signal processing, thermal management, software and wheel mass also affect the experience. Two wheelbases with the same maximum torque can therefore feel different. Compare the complete system, not only the torque figure.
Check before ordering
- That your cockpit and mounting plate support the chosen torque and bolt pattern.
- That the wheel, quick release and electronic connection work together.
- Whether the system is intended for PC, Xbox, PlayStation or multiple platforms.
- That there is room for the power supply, cables and safe operation around the rig.
WANT A DEEPER COMPARISON?
Read the complete Direct Drive guide
The guide explains torque, clipping, encoders, heat, wheel mass and ecosystems to help you choose the right level for your simulator.
Common questions about Direct Drive wheelbases
How much torque do I need for sim racing?
It depends on wheel mass, cockpit rigidity and how strong you want the force feedback to be. The market ranges from 5–8 Nm entry-level systems to 27–35 Nm specialist models. For many drivers, 9–12 Nm is a versatile mid-range, while higher levels add torque headroom and place greater demands on the mounting solution.
Is more torque always better?
No. Higher maximum torque provides more headroom, but motor control, encoder, software, filtering and the fitted wheel also affect the experience. Correct settings matter more than always using maximum force.
Do I need a cockpit for Direct Drive?
A rigid cockpit gives the best result and becomes increasingly important as torque rises. Some compact systems can use a desk clamp, but always follow the manufacturer's mounting and safety instructions.
Do all steering wheels fit every wheelbase?
No. The quick release and mechanical mounting may require an adapter, while buttons, paddles or a display may need the same ecosystem or a separate USB connection. Check both aspects before buying.
Does Direct Drive work on console?
Some systems work on Xbox or PlayStation, but compatibility often depends on the combination of wheelbase, steering wheel and licensed hardware. PC support does not automatically mean console support.
