CONSPIT PW1

CONSPIT PW1

20 999 kr
5–10 days
Total
5–10 days

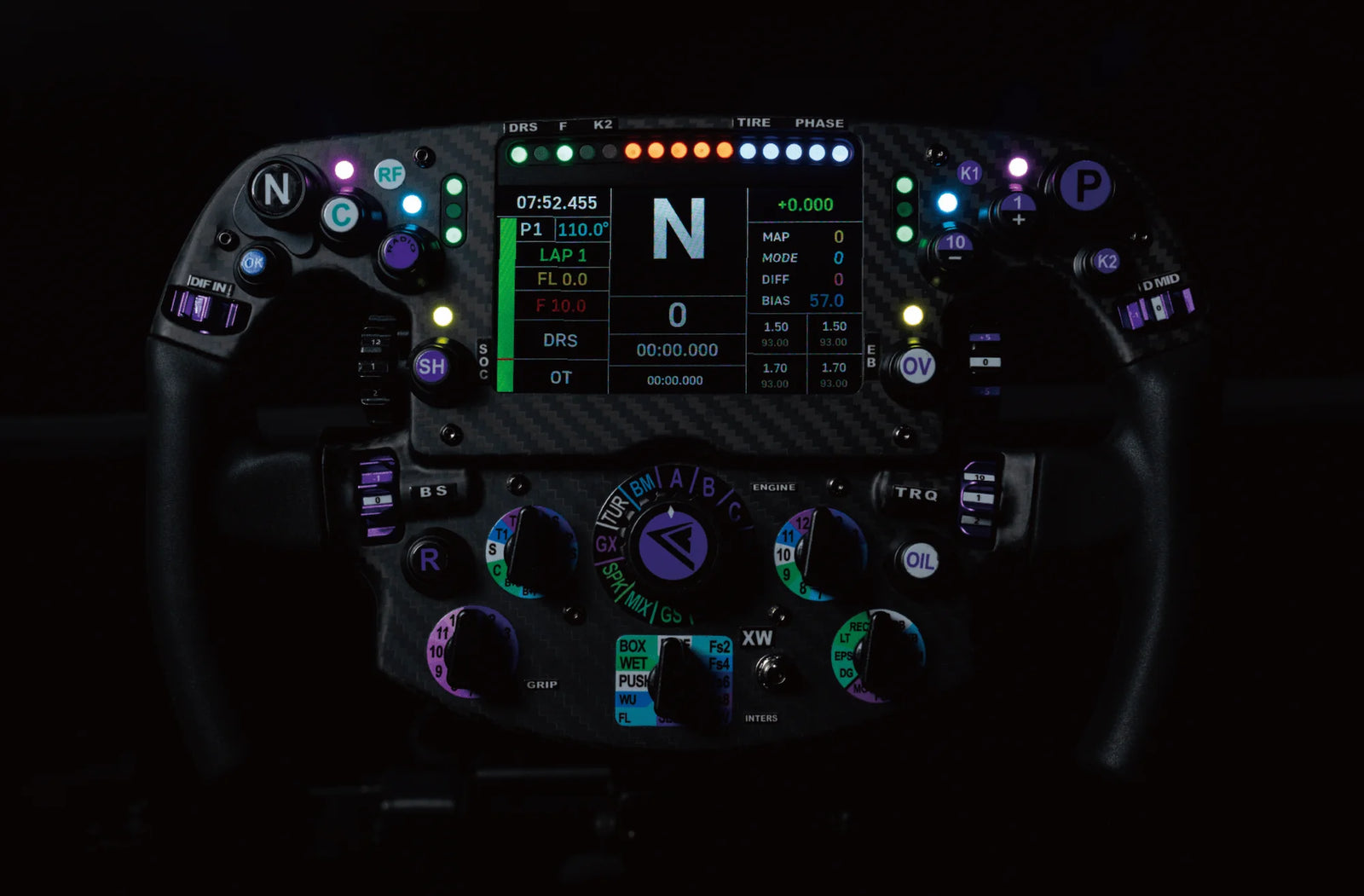

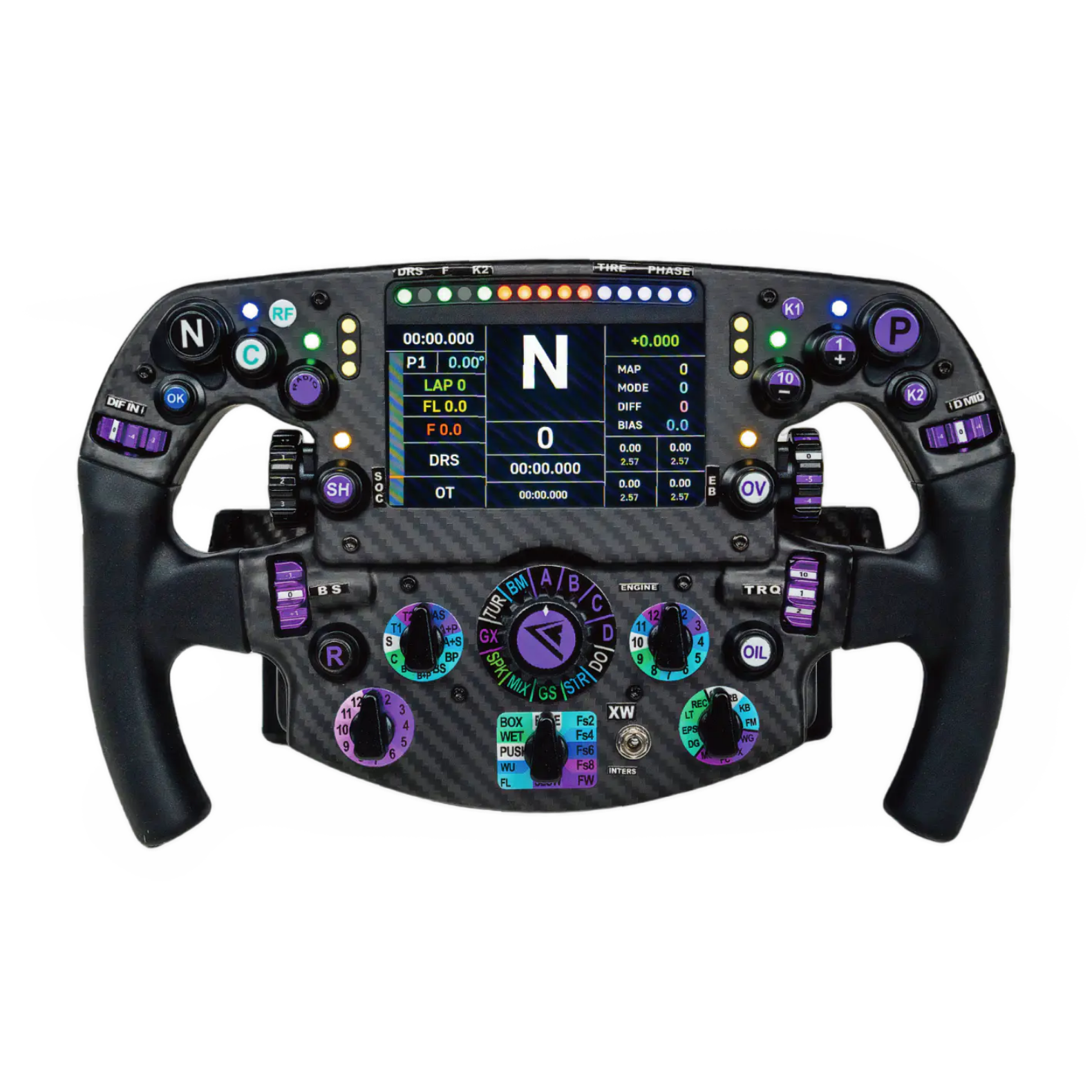

The PW1 is a full-scale F1-inspired sim racing wheel made from T300 prepreg carbon fiber – the same manufacturing process used in real race cars. With a 4.3" color display, 27 RGB LEDs, and the most comprehensive control set on the market, it delivers an authentic formula feel directly into your hands.

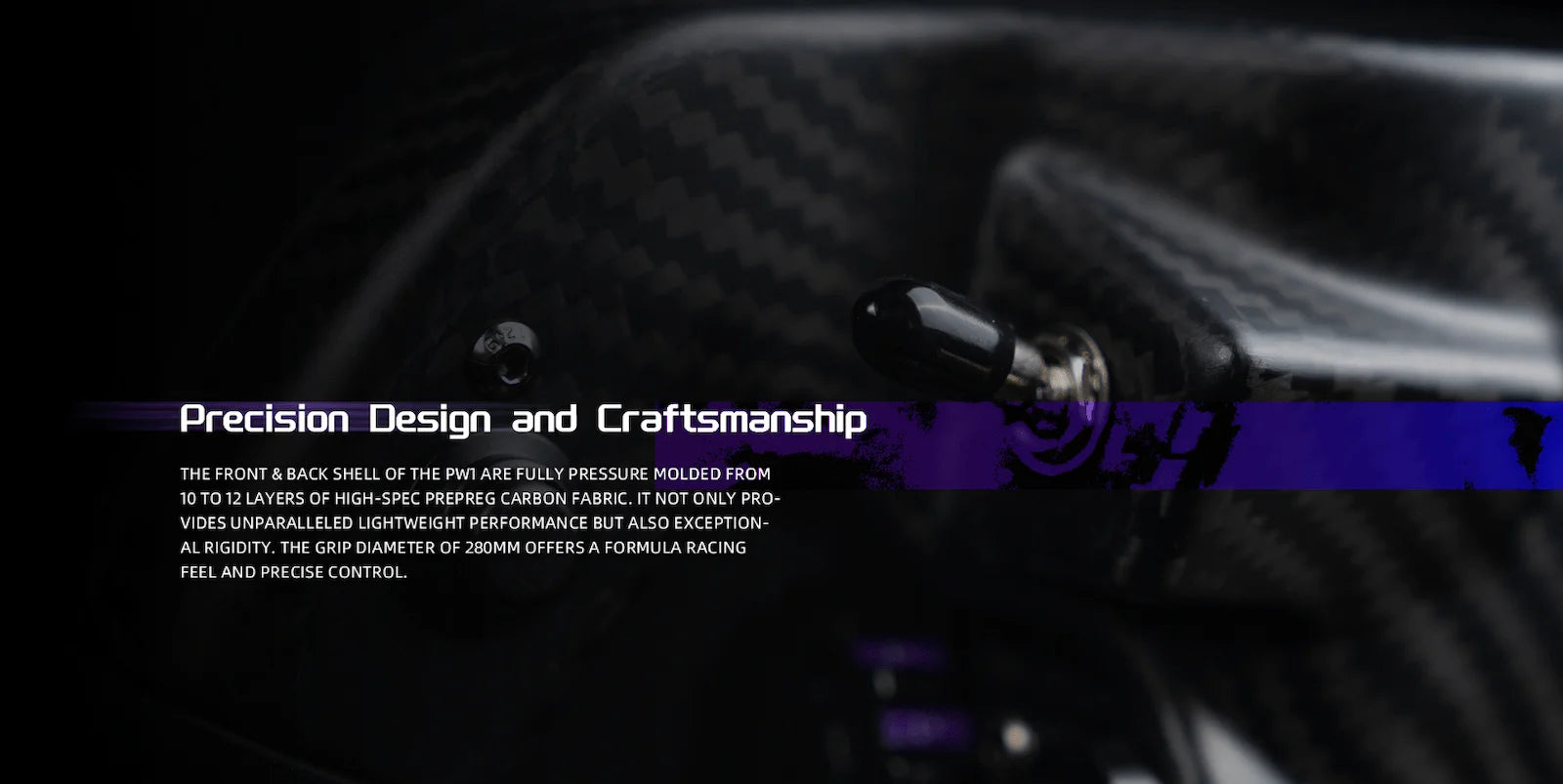

  • T300 prepreg carbon fiber, 10–12 layers – up to 16× stronger than standard composite
  • 4.3" color display (800 × 480) with real-time data
  • 27 × RGB LEDs for RPM, flags, and customizable indicators

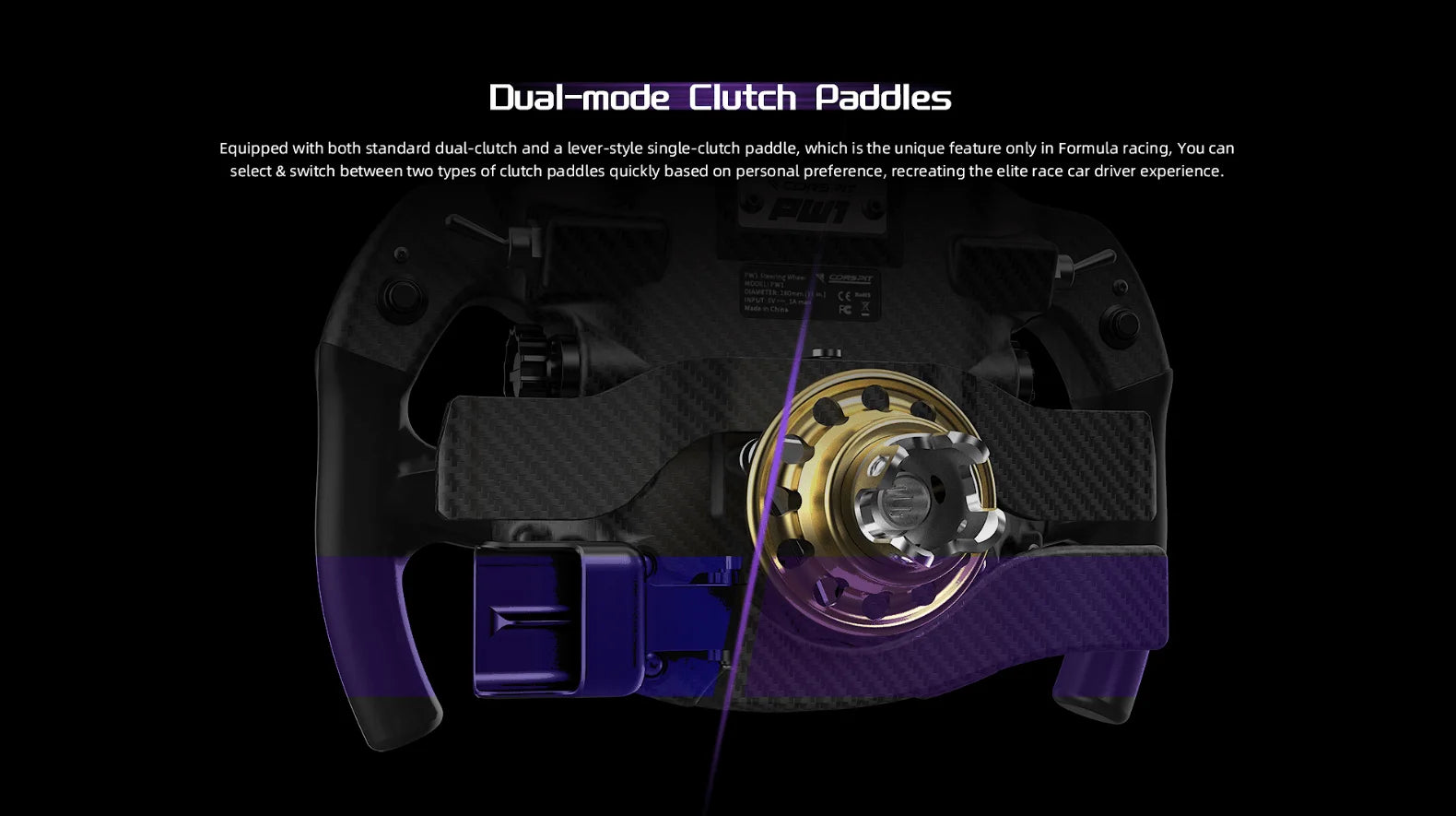

  • Dual clutch paddle system – standard dual-clutch + exclusive F1-style single-clutch

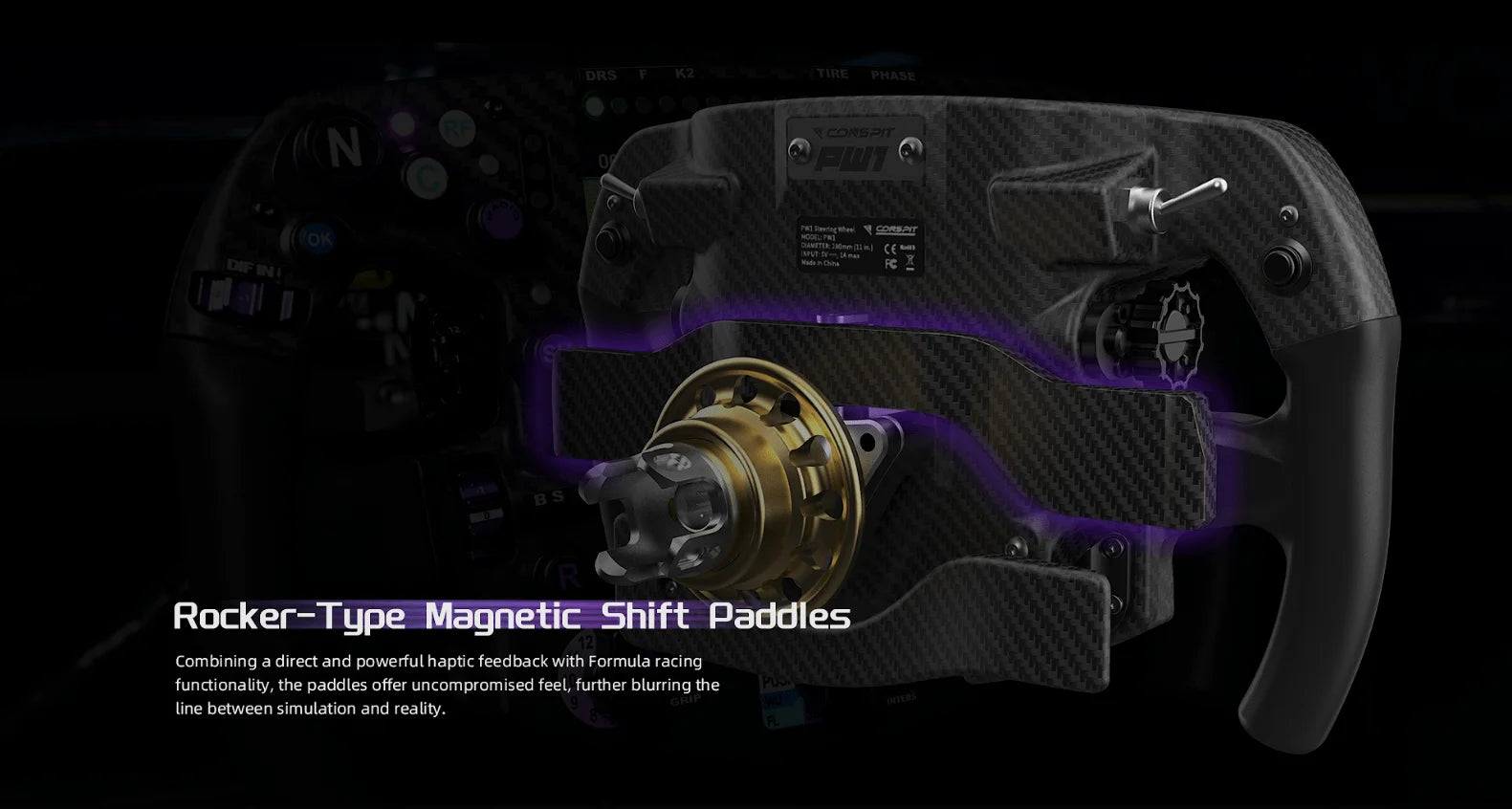

  • Rocker-type magnetic shift paddles with F1-inspired bidirectional shifting

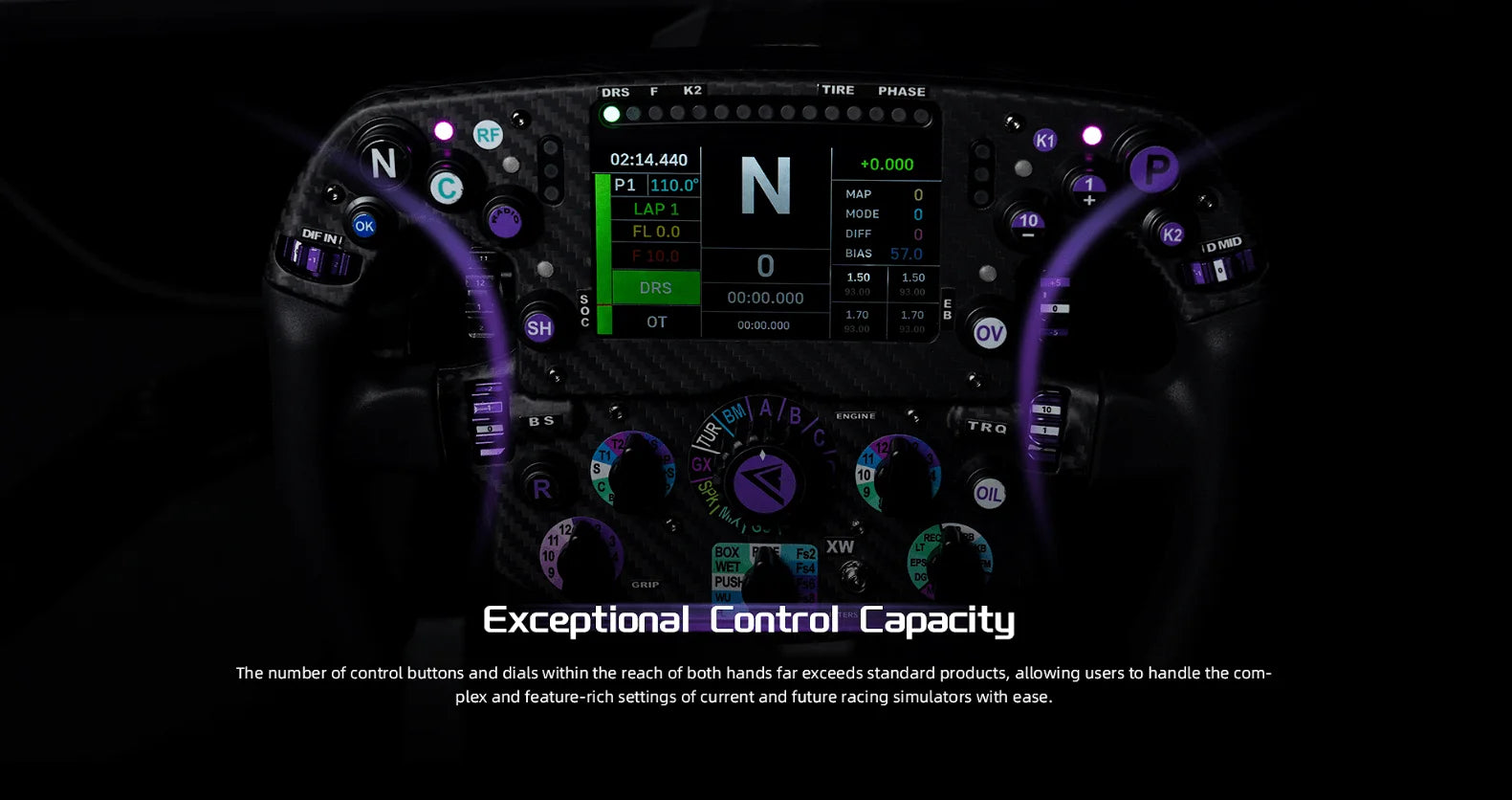

  • 14 buttons, 6 encoder dials, 6 × 12-position rotary selectors, 3 toggle switches
  • Quick-Con adapter (70 mm PCD) with USB coiled cable included

NOTE! Some product images show the wheel with a CDP Quick Release mounted. This is not included – but is available for purchase as an accessory.

Specifications

Dimensions: 280 × 175 × 160 mm
Weight: 1 240 g (dual clutch, exkl. QR/adapter)
Material: T300 prepreg carbon fiber, aluminium alloy
Display: 4.3" color screen, 800 × 480
LEDs: 27 × RGB
Buttons: 14 ×
Encoder wheels: 6 ×
Rotary selectors: 6 × 12-position
Toggle-switches: 3 ×
Clutch paddles: Dual-mode Hall sensor (dual clutch + single clutch)
Shifter Paddles: Rocker-type magnetic Hall sensor
Connection: USB direct / CONSPIT CAN
Platform: PC (Windows)
Software: CONSPIT Link 2.0

Compatibility

Wheel Bases: Standard 70 mm PCD via Quick-Con-adapter (included). Direct connection to CONSPIT ARES via CDP Quick Release (included)
Software: CONSPIT Link 2.0 – bite point, dual clutch logic and independent axis modes

In the package

1 × CONSPIT PW1
1 × Quick-Con-adapter (70 mm PCD)
1 × CDP Quick Release
1 × USB coiled cable (detachable)

Maintenance

Wipe down with dry microfiber cloth. Avoid moisture in connectors and ports. Check that CDP-locking mechanism is clean and free from dirt for optimal zero-play function.
