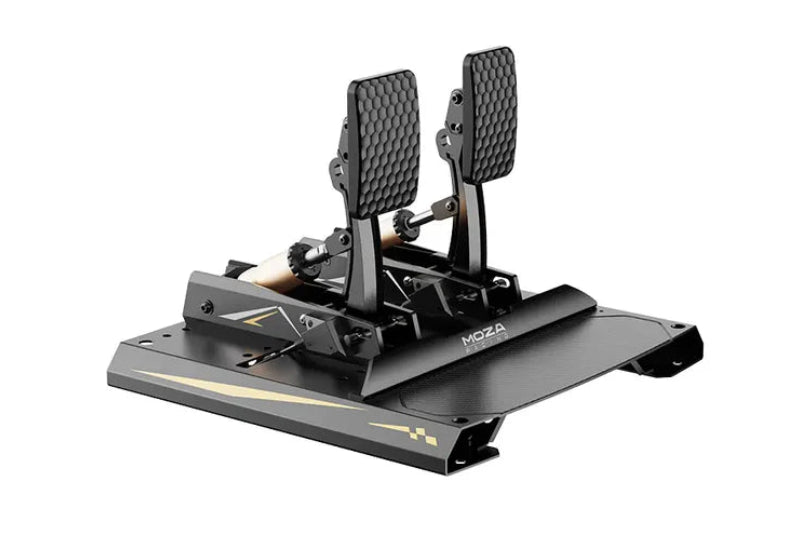

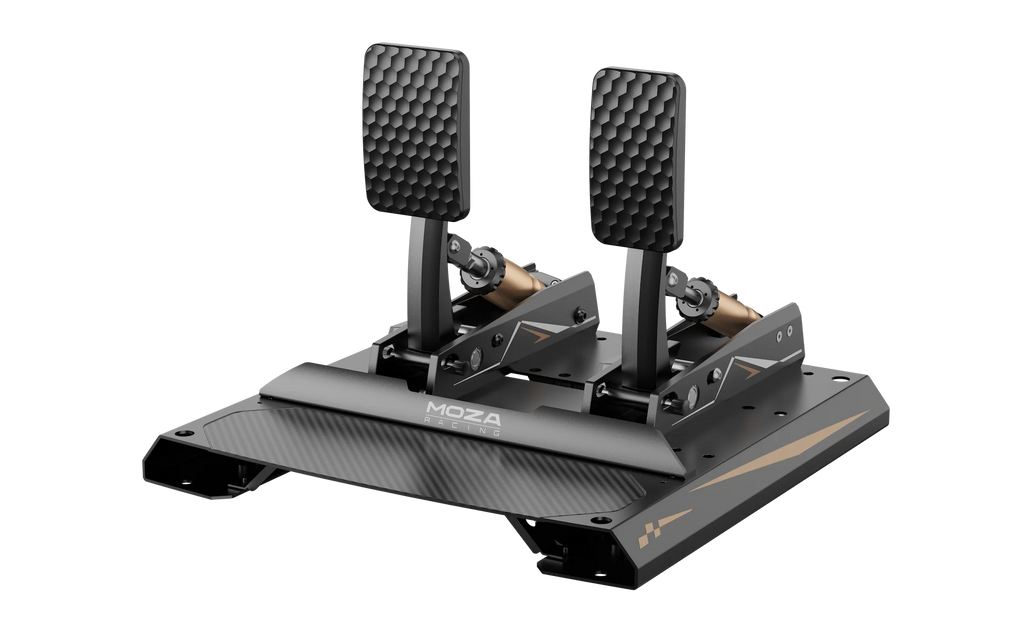

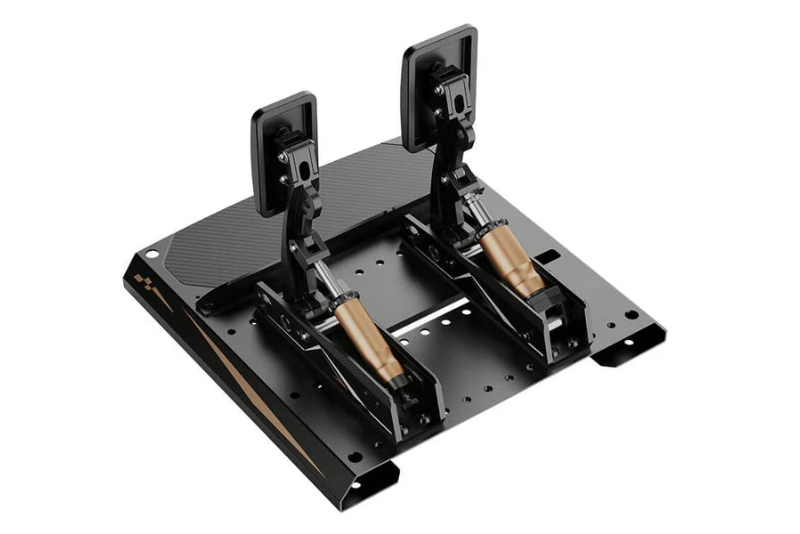

MOZA CRP2 Load Cell Pedals (Throttle+Brake)
  • MOZA CRP2 Load Cell Pedals (Throttle+Brake)
  • MOZA CRP2 Load Cell Pedals (Throttle+Brake)
  • MOZA CRP2 Load Cell Pedals (Throttle+Brake)
MOZA CRP2 Load Cell Pedals (Throttle+Brake)

MOZA CRP2 Load Cell Pedals (Throttle+Brake)

4 599 kr
5–10 days
Total
5–10 days

MOZA CRP2 Load Cell Pedals is a two-pedal set (accelerator + brake) made from CNC-machined aircraft-grade aluminum alloy with a carbon fiber heel plate and a high-strength steel base. Minimalist design with hidden cables and springs for a clean appearance.

The brake combines a 200 kg load cell sensor with a 15-bit angle sensor via a patented sensor fusion algorithm. Damping blocks in four hardness levels provide 125 brake feel combinations as standard — up to 1,764 with the optional Performance Kit.

The accelerator has a highly polished steel shaft, two springs, and continuously adjustable resistance. Tool-free adjustment for everything — pedal spacing, travel, angle, and height. Biomimetic pedal surface for better force application. Supports inverted mounting (kit sold separately). Configured via MOZA Pit House. Compatible with PC and Xbox.

NOTE: Includes accelerator and brake pedals. Clutch sold separately as MOZA CRP2 Clutch Pedal.
Specifications

Pedal body material: aircraft-grade aluminium alloy(CNC-machined, anodized)
Heel plate material: 3K twill carbon fiber
Base material: High-strength steel
Load cell sensor range: 0–200 kg
Brake sensor: Load cell + angle sensor (sensor fusion)
Angle sensor resolution: 15-bit (32 768 PPR)
Brake feel: 115 standard adjustments, 1 764 optional configurations
Throttle pedal adjustment: Two springs, steplessly adjustable
Brake pedal travel: 15–20°
Throttle pedal travel: 15–23°
Pedal angle: 0–15°
Pedal height: Up to 30 mm
Footrest adjustment: Up to 30 mm
Pedal surface: Biomimetic curve
Inverted mounting: Optional
Country of origin: China
Compatibility

PC (USB, direct or via base)
Xbox (via ESX-wheel and compatible base)
MOZA Pit House (configuration)
MOZA CRP2 Clutch Pedal (optional, sold separately)
MOZA CRP2 Inversion Kit (optional, sold separately)
MOZA CRP2 Full Length Throttle Replacement Plate (optional, sold separately)
Brake Performance Kit for CRP2 (optional, sold separately)
In the package

MOZA CRP2 Load Cell Pedals (Throttle+Brake) x1
Tool set x1
Warranty card x1
Maintenance

Clean with a dry microfiber cloth.
Check springs and damping blocks regularly.
Adjust resistance and travel via MOZA Pit House when needed.
Do not disassemble unnecessarily — the warranty is void if handled incorrectly.
