Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
  • Simagic DS-8X H-Pattern Shifter
Simagic DS-8X H-Pattern Shifter

Simagic DS-8X H-Pattern Shifter

4 590 kr
5–10 days

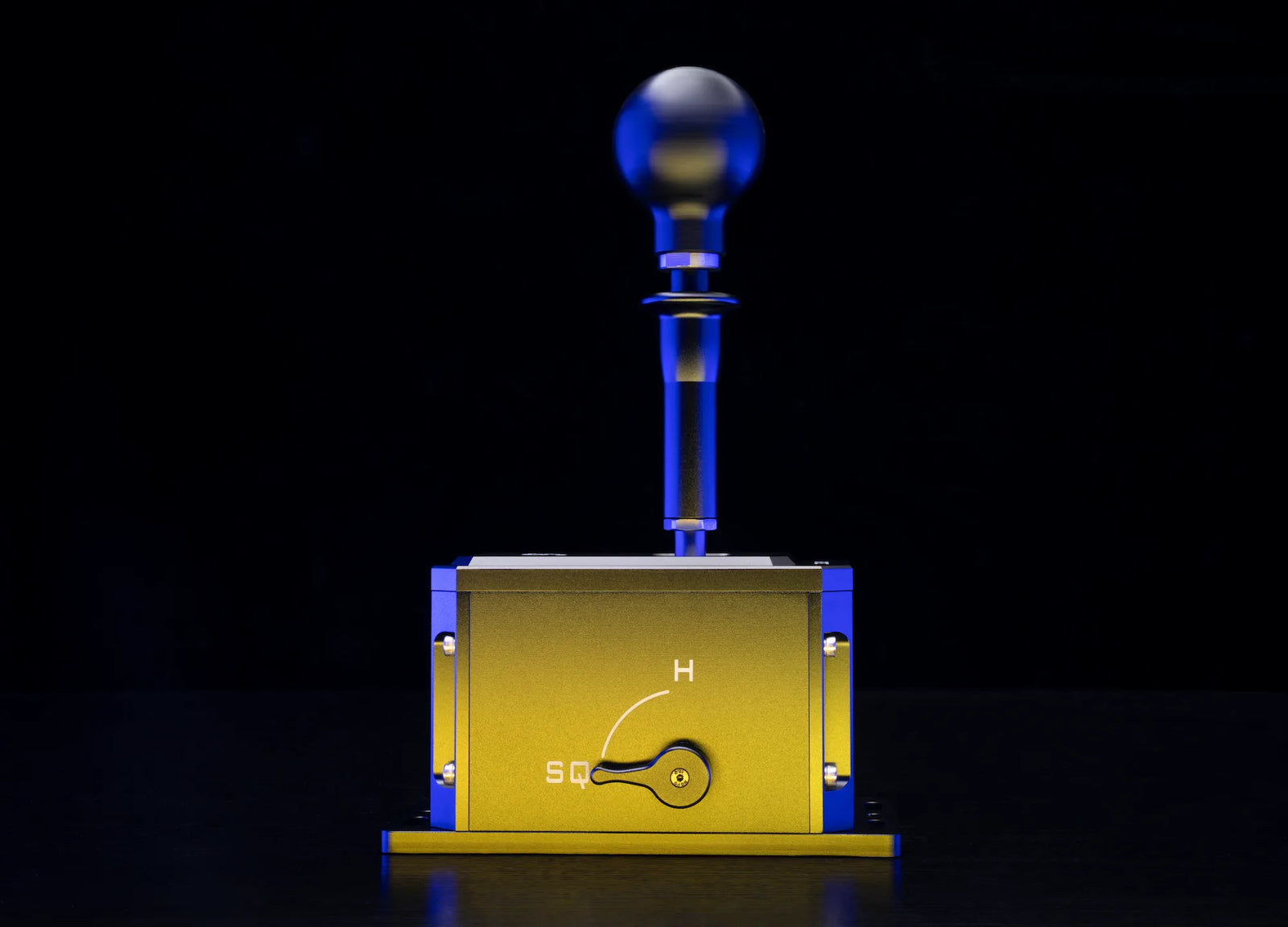

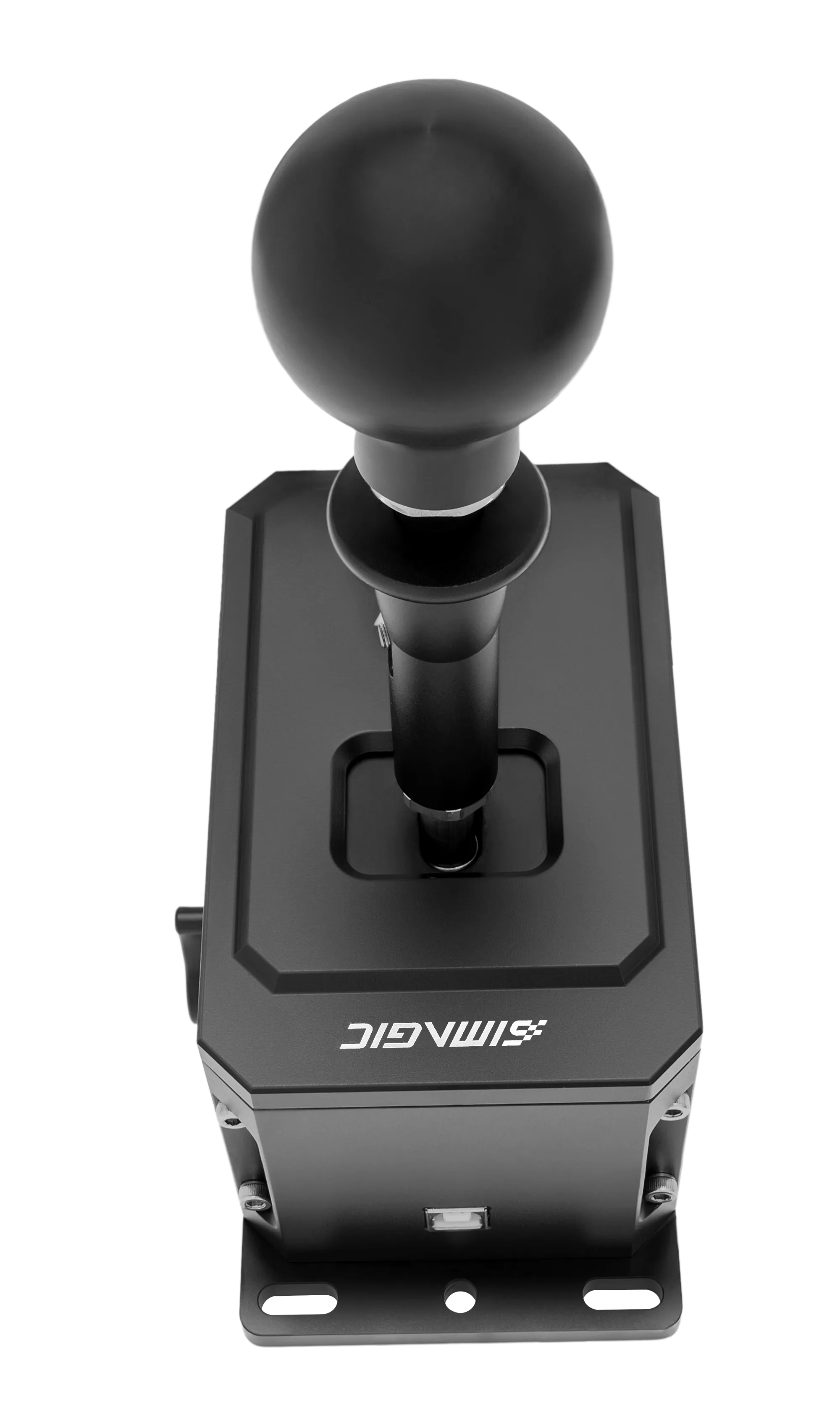

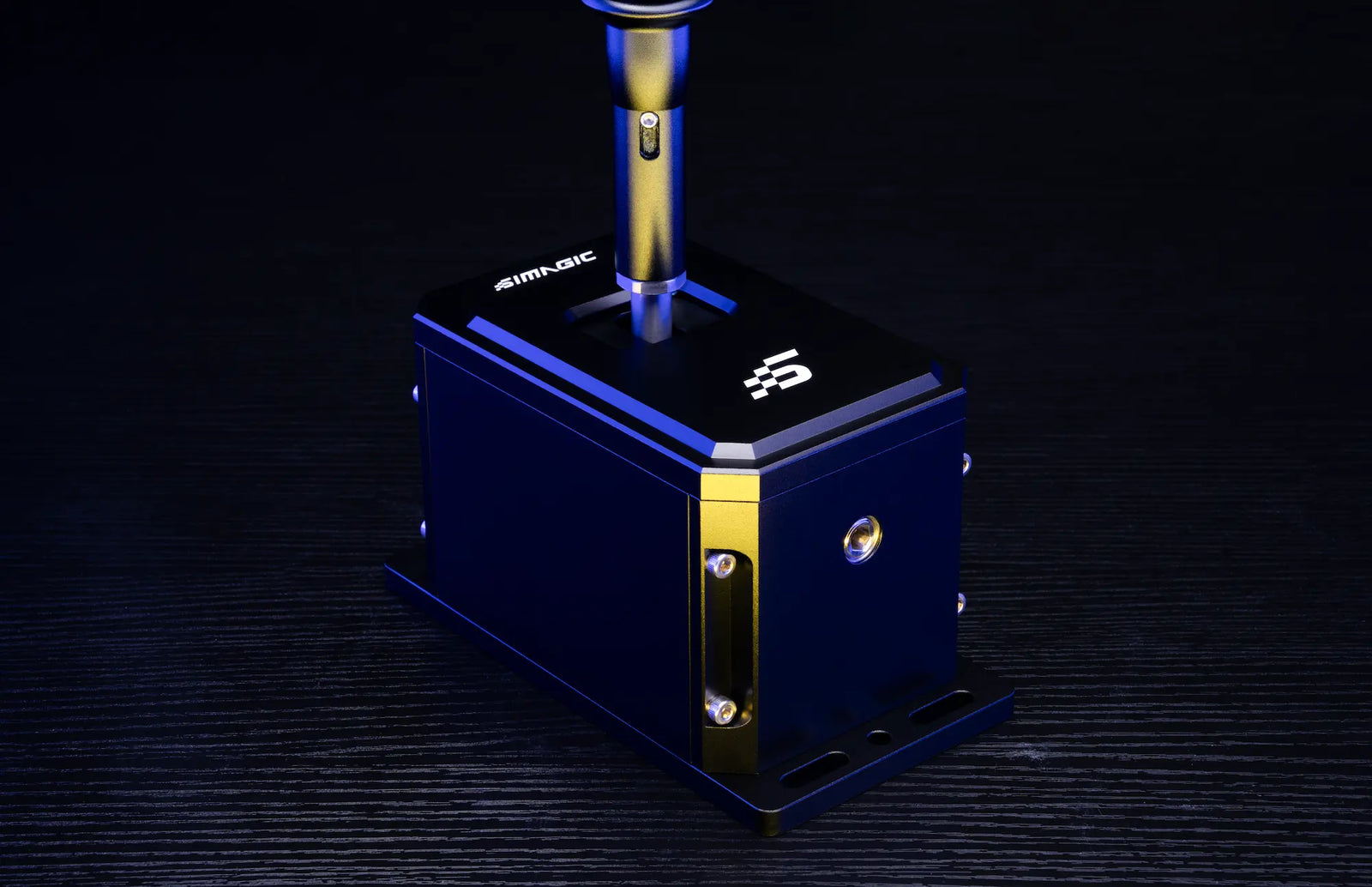

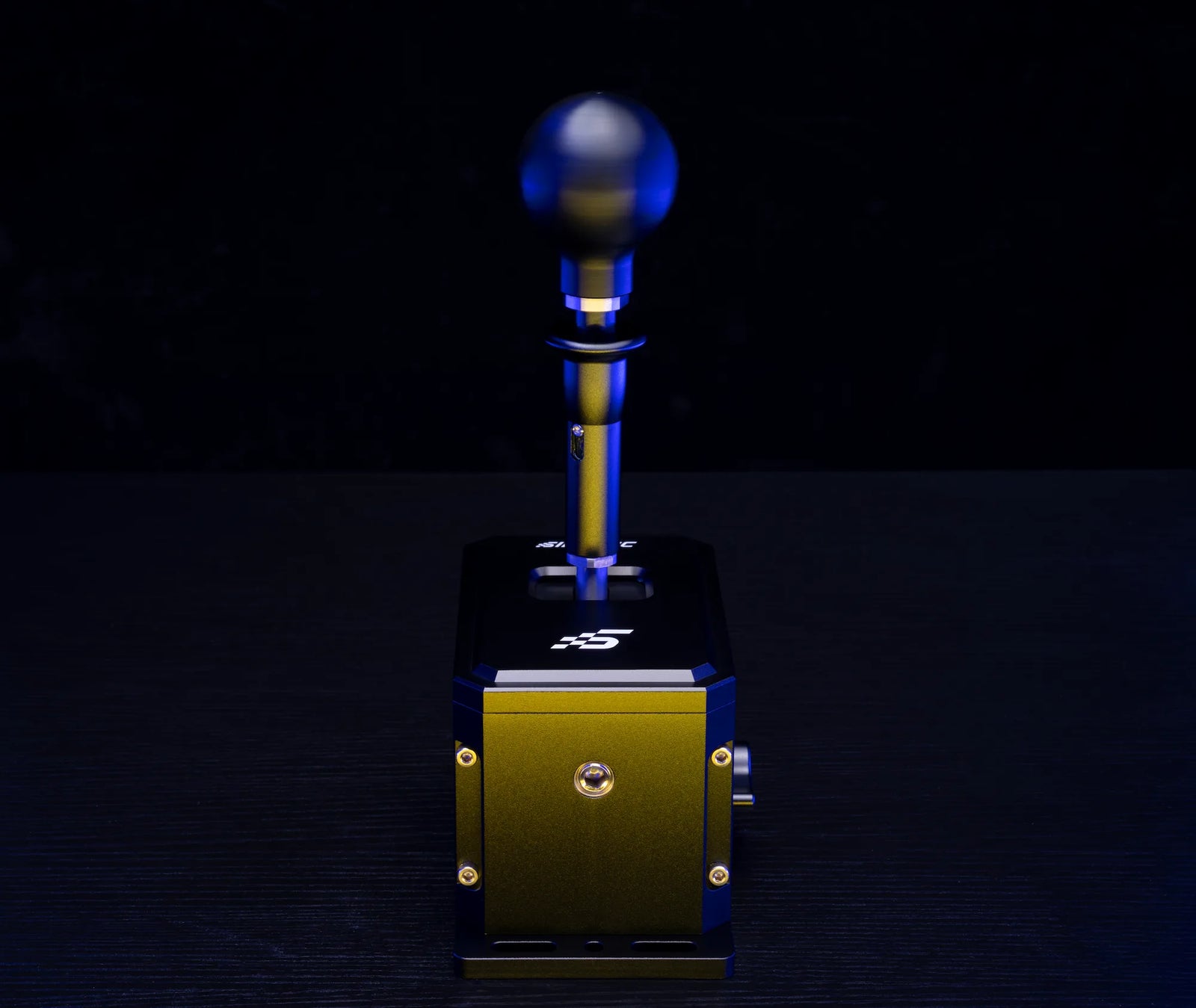

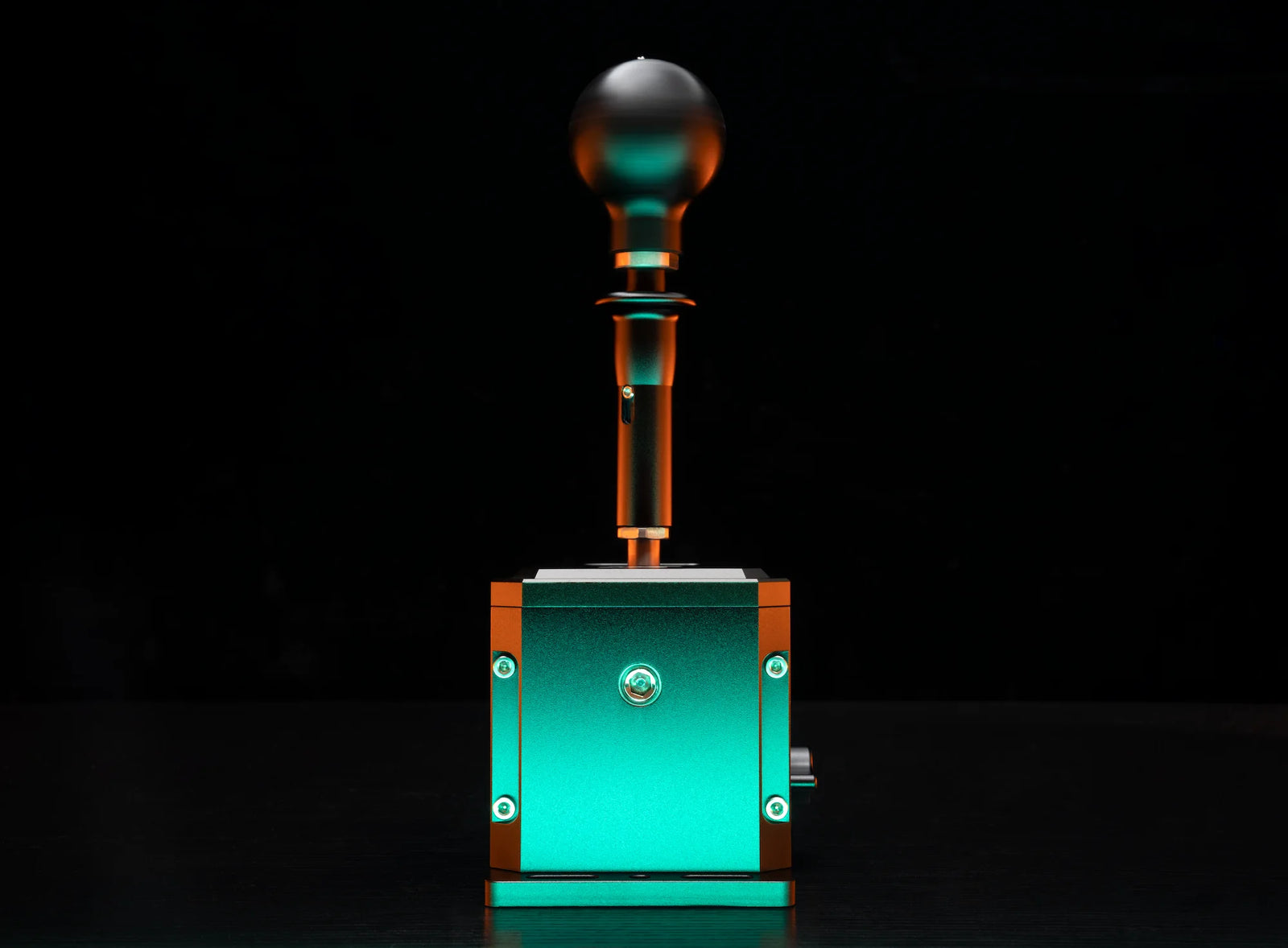

The Simagic DS-8X is a hybrid 8-speed H-pattern/sequential shifter, made entirely of CNC-machined aluminum with a reinforced steel core. Switch between H-pattern and sequential mode with a simple latch, and lock gears 7, 8 and R with the built-in gear lock to prevent accidental shifts. With adjustable damping, interchangeable shift knobs, and plug-and-play USB, the DS-8X is ready for everything from rally to touring car.
Specifications

SKU: DS-8X
Dimensions (L x W x H): 170 x 102 x 264.5 mm
Net weight: 2.0 kg
Material: CNC-machined aluminium with reinforced steel core
Shifter modes: 6+2+R+SQ (8F+1R)
Connection: USB Type-A (plug & play)
Adjustable damping: Yes
RGB buttons: No
Side mounting bracket: Optional (P-LOK)
Replaceable gear knob: Yes
Mounting holes: M6 threaded x4, M6 through x6
Country of origin: China
Compatibility

PC (USB plug & play, no driver required)
Simagic wheel bases (via USB)
Fits most sim racing rigs via M6 screws
Compatible with third-party gear knobs
Side mounting possible with the optional P-LOK L-bracket

Optional (not included):

P-LOK Multifunctional L-bracket
P-DFT Multifunctional desk mount
P-Q1-PLong handles
P-RSK round gear knob
P-TSK conical gear knob
Simagic stickers for DIY
In the package

Simagic DS-8X Shifter x1
USB data cable x1
Tweezers x1
Installation kit:
- Button Head Socket Cap Screw M6-14 x4
- Roll-in T-nut with ball spring M6-40 x4
- Allen key 4 mm/6 mm x1
Maintenance

Clean with a dry microfiber cloth.
Avoid solvents on aluminium and plastic parts.
Regularly check that mounting screws are tightened.
Lubricate moving parts as needed with a suitable lubricant.
Adjust damping via the screw on the side of the unit.
