Short answer: For most sim racers, a rigidly mounted load-cell pedal set is the best starting point. It makes braking easier to repeat because the brake signal is primarily based on force. Hydraulic systems can offer a different mechanical feel and more physical adjustment, while active pedals provide the greatest freedom to change resistance, travel and feedback in software.
The most advanced-sounding technology is not automatically the right choice. The best pedal is the one that gives you repeatable braking force, controllable travel and a driving position you can maintain throughout a race.
Load cell, hydraulic and active pedals: what is the difference?
| Pedal type | What is measured or creates resistance | Main strength | Consider |
|---|---|---|---|
| Position sensor | Pedal angle or movement, often measured by a Hall sensor | Simple, smooth and usually affordable | Braking is more dependent on returning to the same pedal position |
| Load cell | Force within the pedal mechanism | Makes it easier to develop repeatable braking based on muscle memory | Needs rigid mounting and correct calibration |
| Hydraulic | Hydraulics create resistance; the signal may still be measured by a load cell or another sensor | Can provide progressive and damped mechanical feel | Hydraulics are not automatically more accurate than a good load cell |
| Active pedal | A motor electronically generates and changes the resistance | Travel, force curve, damping and feedback effects can be adjusted in software | Higher cost and power requirements; some effects depend on game telemetry |
Sensor capacity is not the same as force at your foot
A specification such as “200 kg load cell” describes the sensor range or the capacity of the design. It does not mean that you must press the pedal with 200 kg, and it does not tell you how stiff the pedal feels.
Force at the pedal face is affected by pedal ratio, springs or elastomers, hydraulics, pedal-face position and software calibration. Two pedal sets with the same load-cell rating can therefore feel completely different. Full braking can also be calibrated far below the sensor’s maximum range.
Do not compare pedals solely by the largest kilogram figure. Compare usable force, adjustable travel, mechanical quality and how well the available settings suit your body and rig.
What do real racing pedals feel like?
There is no universal Formula, GT or rally pedal. Real race cars use different pedal ratios, master cylinders, braking systems and driver settings. Even Formula 1 pedal force varies by car, circuit and braking zone. Official sources mention approximately 160 kg in the most demanding situations, while Brembo reported 114 kg for the heaviest braking zone at Miami in 2026.
Professional pedal boxes from AP Racing and Tilton are also available with multiple pedal ratios. That is why one number cannot define how a “real GT brake” or “real Formula brake” should feel.
Three useful starting profiles
These are simulator starting points, not fixed motorsport standards.
Formula-inspired
- Shorter movement and firm resistance.
- Rapid force build-up with little foot movement.
- Controlled, clearly defined release for trail braking.
GT and endurance-inspired
- Moderate travel and a progressive force curve.
- Focus on repeatability and reduced fatigue during long stints.
- Enough movement to feel the transition from heavy braking to release.
Rally and drift-inspired
- Generous, easy-to-modulate throttle travel.
- A distinct clutch bite point for starts and H-pattern shifting.
- Brake force and travel selected for the car, technique and driver preference.
Short travel can provide a direct response with less foot movement. Slightly longer travel can give some drivers a larger range over which to modulate the pedal. Neither is automatically faster. The best setting is the one you can hit consistently, especially while releasing the brake towards the apex.
Load cell: the best starting point for most drivers
A load-cell brake measures force within its mechanism. Once securely mounted, it is often easier to repeat the same braking force lap after lap than with a basic position-based brake.
The pedal does not need to be extremely stiff. Begin at a level where you can reach full braking without bracing your hips, back or shoulders. Increase resistance only when you can modulate and release the pedal in control. A higher maximum force is not useful if your seating position moves or you become fatigued after ten minutes.
SimEdge offers load-cell pedals from brands including MOZA, Simagic, Cube Controls and CONSPIT.
Hydraulic pedals: feel, damping and mechanics
Hydraulics can create resistance and damping that feel different from purely spring- or elastomer-based mechanisms. However, “hydraulic” does not necessarily describe how the input signal is measured. A hydraulic pedal set can still use a load cell as its sensor.
Choose hydraulics for the construction, adjustment range and feel—not because the technology is automatically more realistic or precise. Simagic P2000 is one example in the SimEdge range, while P1000 can be expanded with hydraulic and haptic accessories.
Active pedals: pedal feel configured in software
An active pedal uses a motor to generate resistance. This allows travel, starting force, ending force, force curve, friction and damping to be changed without replacing springs or elastomers.

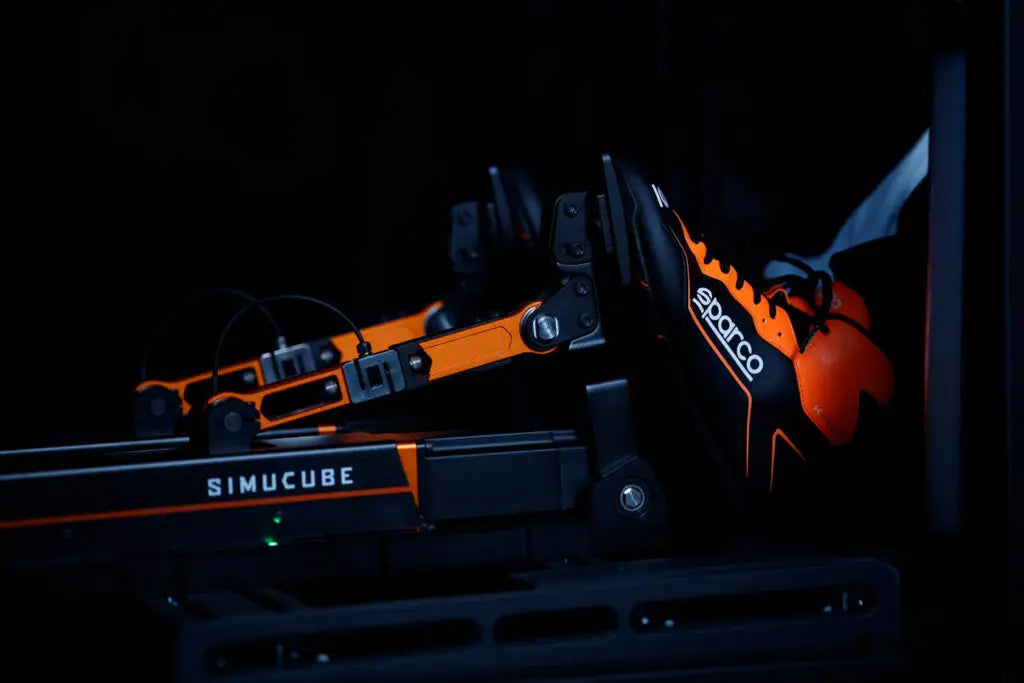

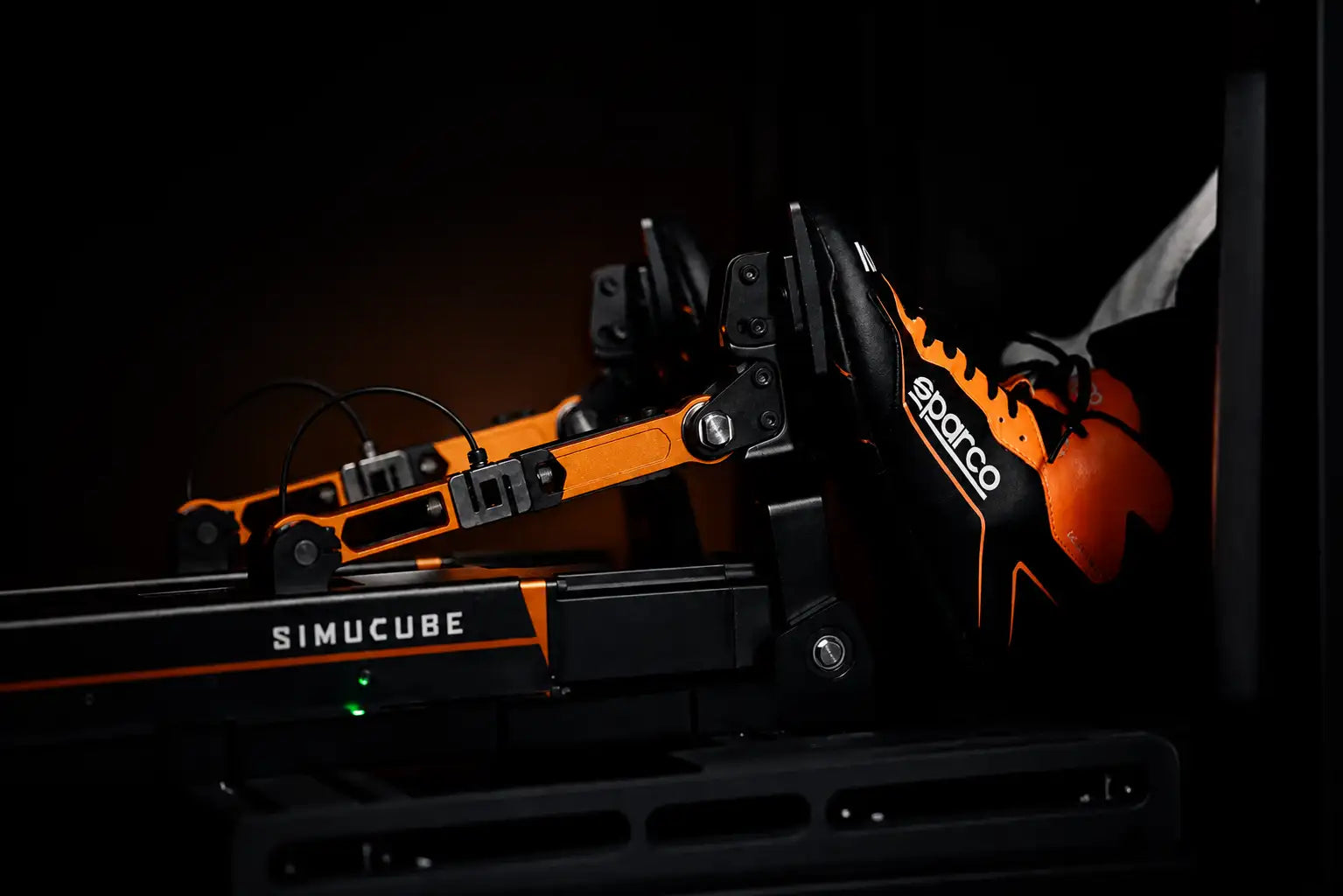

Simucube ActivePedal Ultimate can be configured as a brake, throttle or clutch and provides adjustable force and movement profiles. MOZA mBooster combines its motor system with force and angle sensors and can also perform different pedal roles. Effects such as ABS pulses, traction control and engine vibration rely on telemetry, so they only work when the game and software support the required data.
The main benefit is not that an active pedal is always faster. It is the ability to save different profiles, test changes from the cockpit and reproduce the same setup accurately.
Mounting matters more than many drivers expect
A force-based brake needs a stable chain from your foot through the pedal plate, cockpit and seat. If the pedal deck flexes or the seat slides, your body moves instead of the pedal. That reduces comfort and repeatability.
- Check that the pedal deck does not flex at your selected braking force.
- Support your lower back and hips so the body is not pushed rearwards.
- Position the brake so your knee does not lock at maximum force.
- Adjust pedal-face height for heel support and heel-and-toe use where relevant.
You do not automatically need one particular cockpit material. What matters is real stiffness at the force you intend to use. Explore cockpits and mounting solutions if your current rig moves under braking.
Compatibility: PC, wheelbase and console
On PC, many pedal sets connect directly through USB, while some connect through the manufacturer’s wheelbase or a separate adapter. Telemetry-based effects also require a supported game and correctly configured software.
Console compatibility is normally more restricted and tied to the wheelbase ecosystem. Always check the exact combination of pedal, wheelbase, platform and game before buying. A USB connection does not automatically mean that a product works on every console.
How to choose the right sim racing pedals
- Choose the feel: short and firm, longer and progressive, or multiple software profiles.
- Assess the rig: do not choose more usable brake force than your cockpit and seating position can support.
- Check adjustment: travel, force curve, angle, spacing and pedal faces.
- Check compatibility: PC or console, USB or wheelbase connection, and telemetry-effect support.
- Choose the pedal count: two pedals suit many modern race cars; a clutch matters more for H-pattern shifting, starts and historic cars.
- Prioritise repetition: the best brake is the one you can reach and release the same way lap after lap.
Frequently asked questions
Is a 200 kg load cell better than a 100 kg load cell?
Not automatically. The figure describes sensor range, not the force you must use or how the pedal feels. Mechanics, pedal ratio and calibration are equally important.
Are hydraulic pedals more realistic?
They can offer different damping and mechanical feel, but hydraulics do not guarantee greater precision. Realism depends on the car and pedal profile you are trying to reproduce.
Will active pedals make me faster?
They can make it easier to find, save and reuse a good profile and can provide useful feedback. Lap time still depends on technique, practice and consistent pedal control.
How stiff should I set the brake?
Stiff enough to modulate precisely without moving your body or causing unnecessary fatigue. Start lower and increase it gradually.
Conclusion
For most sim racers, a well-mounted load-cell brake is the most balanced upgrade. Hydraulics suit drivers who value a particular mechanical feel and detailed physical adjustment. Active pedals are the choice for maximum configurability, repeatable profiles and telemetry-based feedback.
Start with the feel and control you want—not the largest kilogram figure on the specification sheet. Explore all sim racing pedals at SimEdge or contact us for help matching pedals to your cockpit and wheelbase.
