9 Nm

Powerful direct drive for a clear and controlled driving experience.

21-bit magnetic encoder

Motor position is measured at 21-bit resolution.

NexGen 4.0

MOZA's documented force-feedback algorithm.

MOZA R9 V3 combines 9 Nm of direct-drive torque with a compact aluminium housing. Its 21-bit magnetic encoder records 2,097,152 positions per revolution, while NexGen 4.0 reproduces changes in grip, weight transfer and surface detail with high precision.

The wheel base is configured through MOZA Pit House, where force feedback, steering angle, damping and game profiles can be adjusted. Active temperature control helps maintain consistent performance during longer sessions.

9 Nm direct drive
21-bit magnetic encoder
NexGen 4.0 force feedback algorithm
Active temperature control
For Windows PC

Steering wheel, pedals and mounting solution are sold separately.

MOZA Racing · Wheel Bases

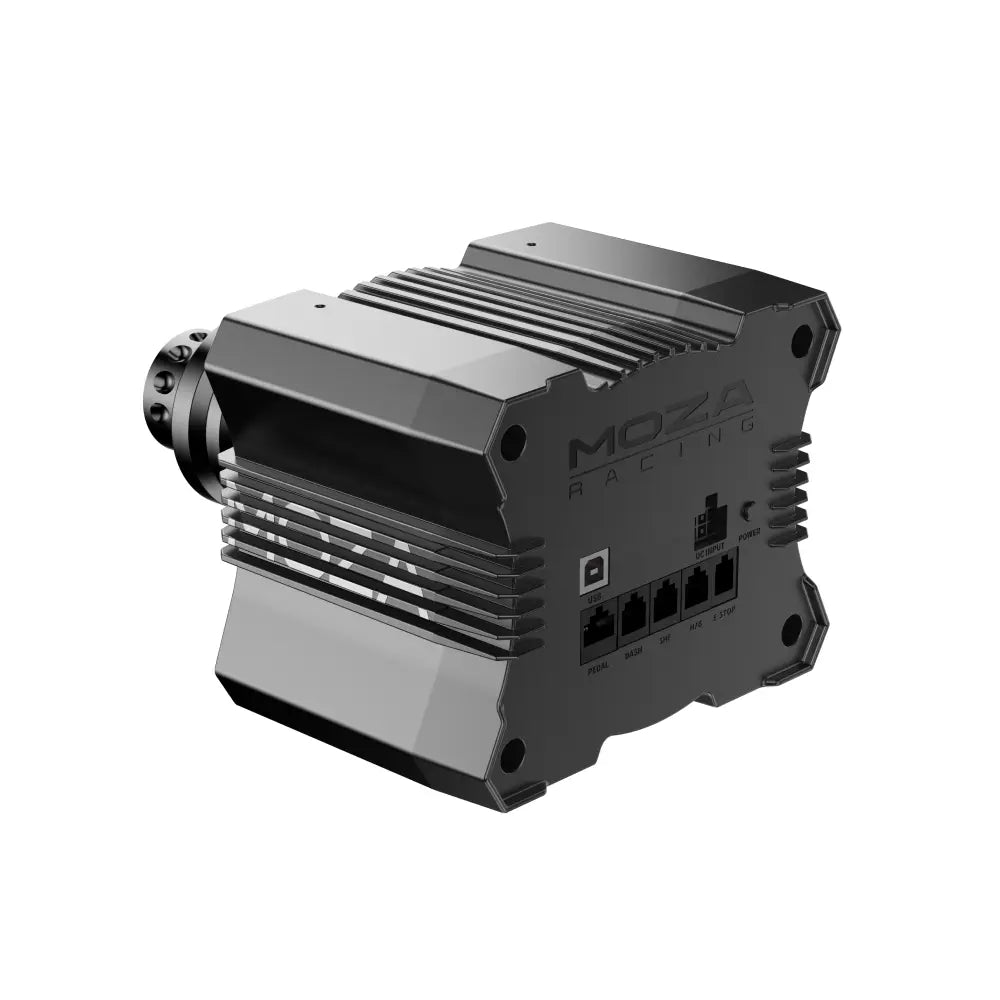

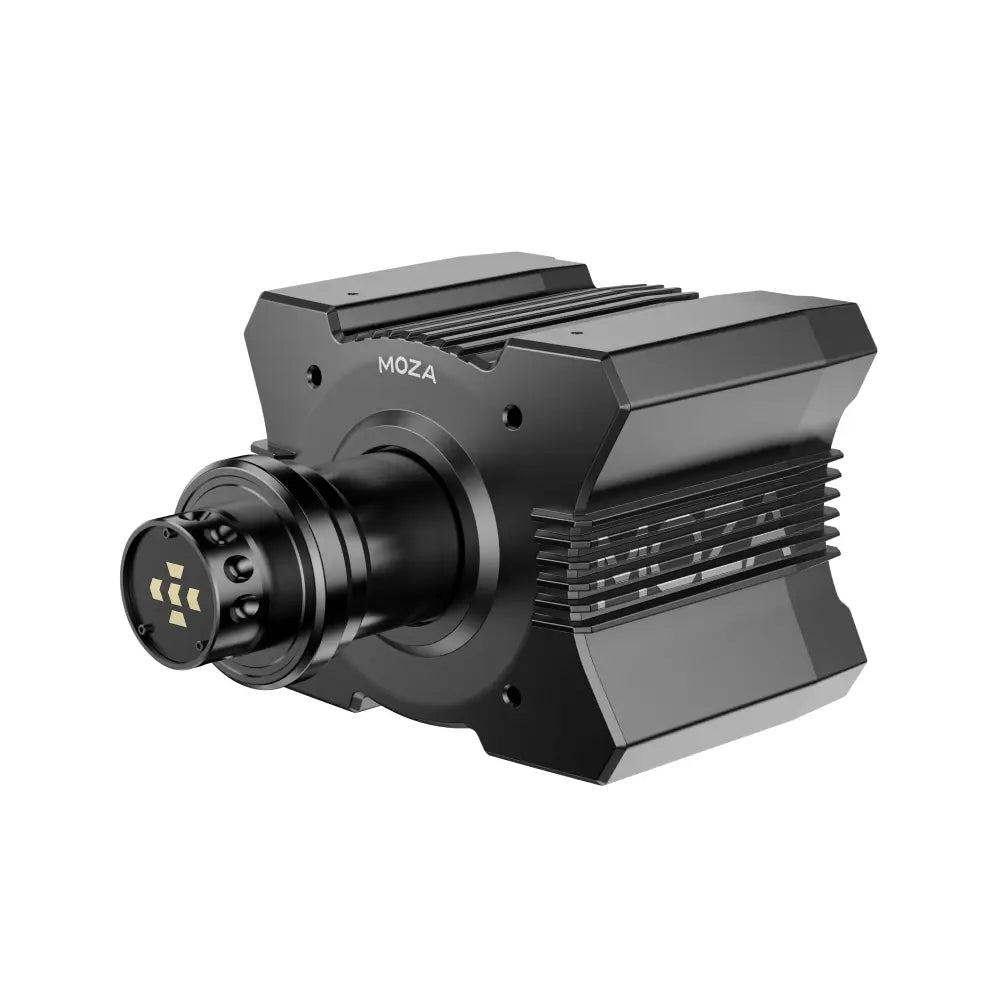

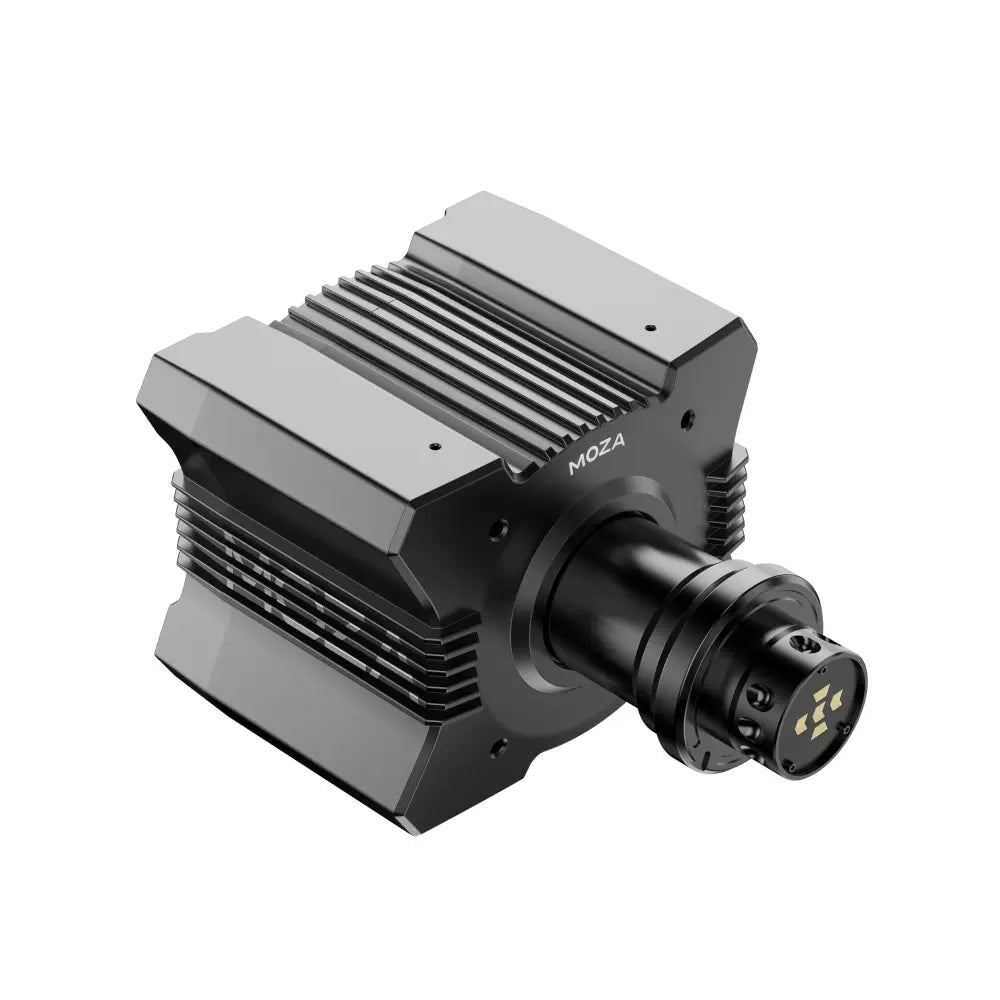

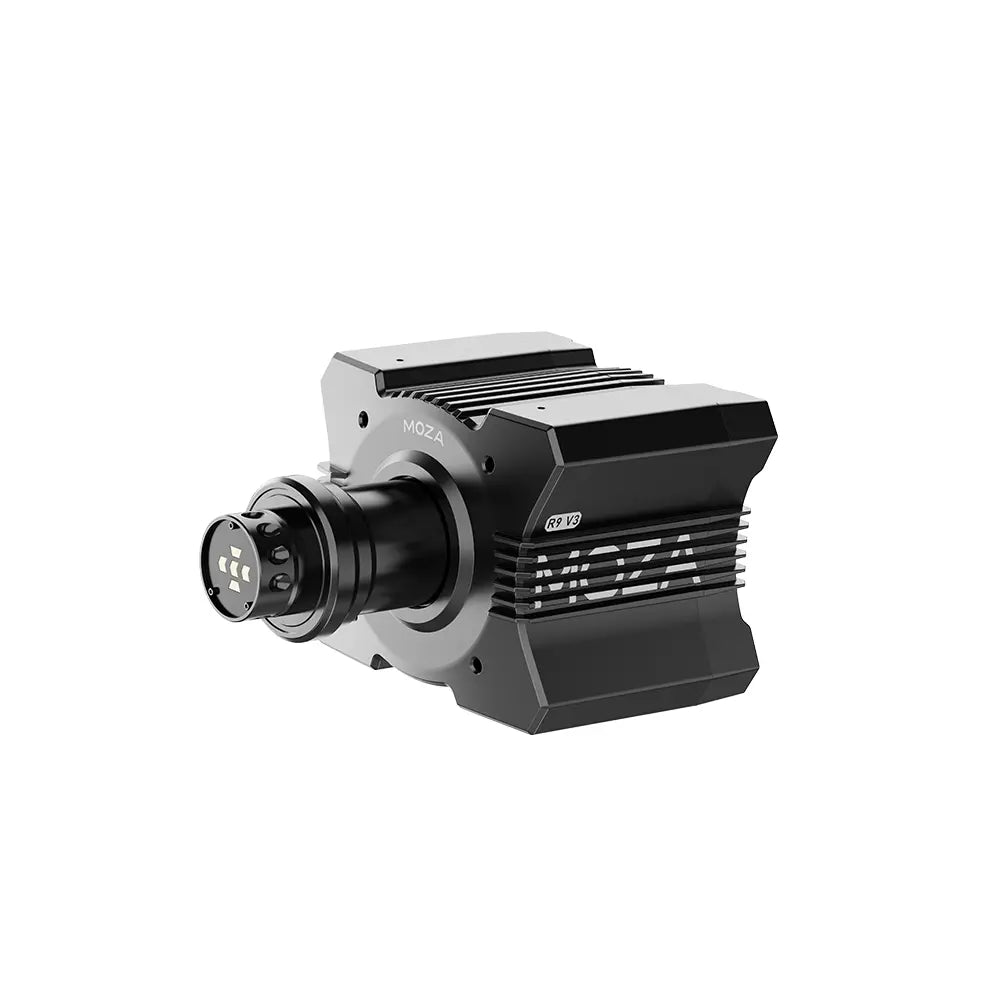

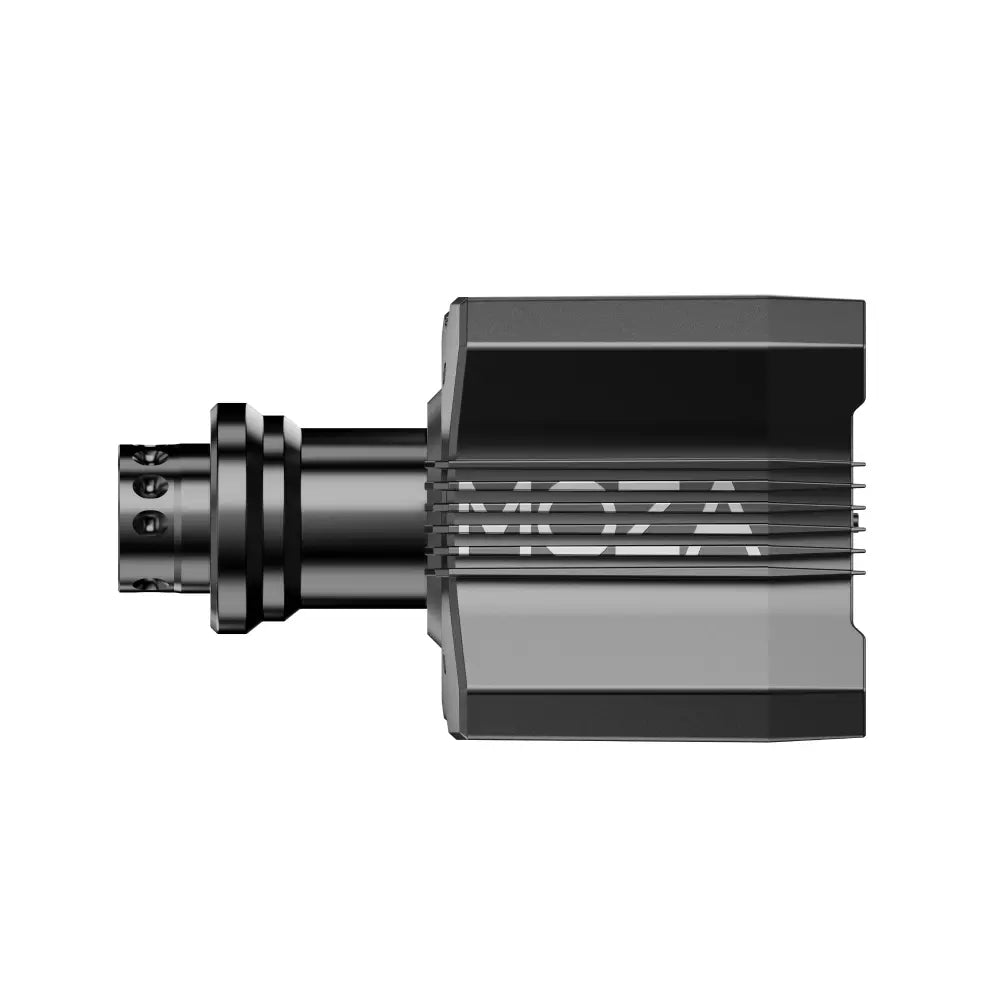

MOZA R9 V3 Direct Drive Wheel Base – 9 Nm

Name: MOZA R9 V3 Direct Drive Wheel Base – 9 Nm
Brand: MOZA Racing
SKU: RS080
Price: 4099.00 SEK
Availability: InStock

4 099 kr

Build your setup

Need help choosing? Contact us

WHEELBASE MOUNT

QUICK RELEASE

STEERING WHEELS

MOZA R9 V3 Direct Drive Wheel Base – 9 Nm 4 099 kr

Total VAT included

3–9 business days

Personal customer service Help before and after your purchase

14-day right of withdrawalRead our return policy

TECHNICAL OVERVIEW

Platform: Windows PC
Drive system: Direct Drive
Peak torque: 9 Nm
Encoder: 21-bit magnetic, 2,097,152 steps
USB refresh rate: 1000 Hz
Steering angle: 90–2700°
Motor: servo motor with 18 slots and 16 poles
Housing: aluminium alloy
Dimensions: 240 × 157 × 124 mm
Mounting: four-hole bottom mount; optional side mount, front mount and table clamp
MPN: RS080
EAN: 6973137270810

Windows 10/11 and MOZA Pit House
Current MOZA wheels with MOZA Quick Release

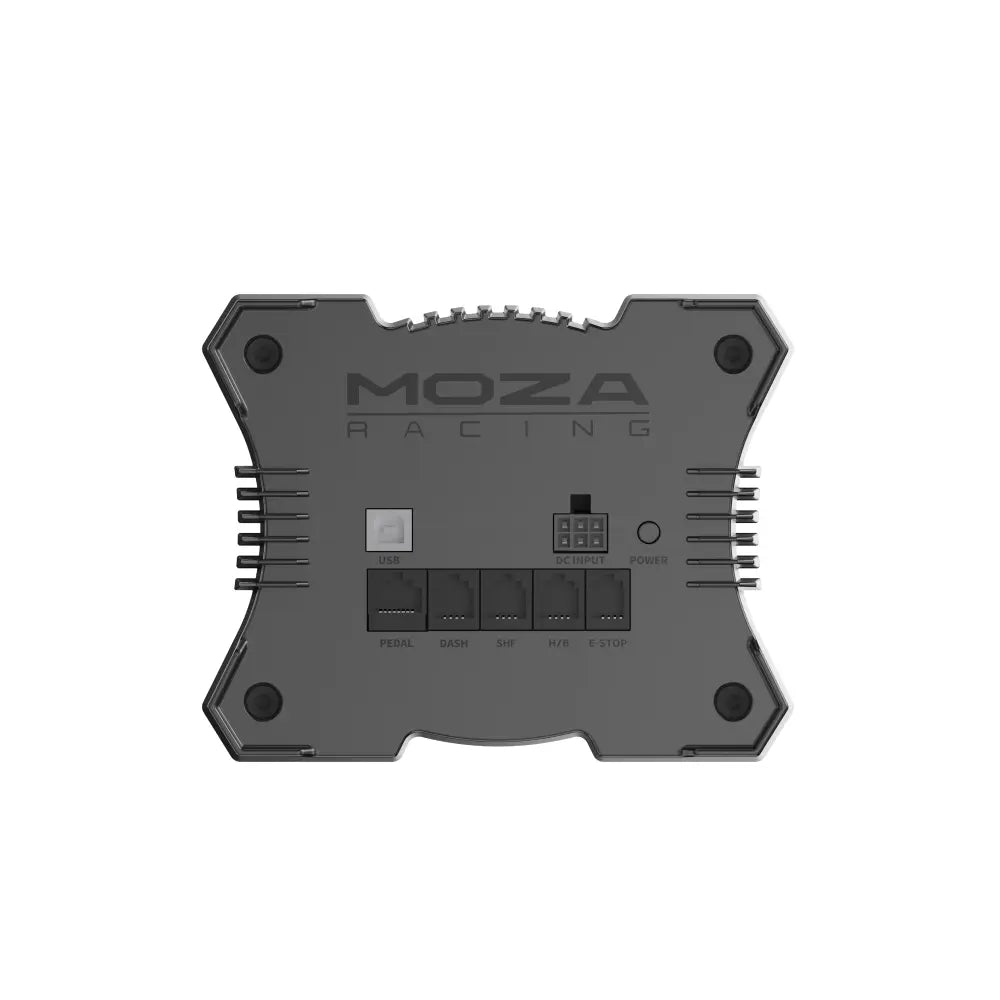

Pedals, shifter, handbrake, dash and E-stop can connect through the base ports
PC only; not intended for Xbox or PlayStation

MOZA R9 V3 wheel base
Power adapter and cable
USB cable
Tool kit
Manual and warranty card

Clean the housing with a dry microfiber cloth. Keep liquids away from electronics and connectors. Check cables and mounting regularly, and update firmware through MOZA Pit House.
